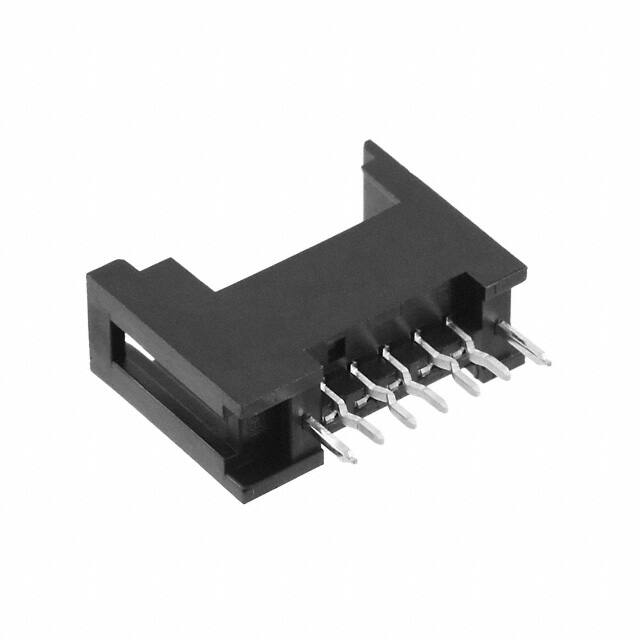

XN2D-1571

Teknik Özellikler

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-30°C~75°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Montaj

Through Hole

Voltage Rated Dc

32V

Ambalaj

Bulk

Pozisyon Sayısı

5

Mixed Contacts

NO

Style

Board to Cable/Wire

Insulation Materials

Polybutylene Terephthalate (PBT)

Max Voltage Rating Dc

32V

Mil Conformance

NO

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Option

GENERAL PURPOSE

Connector Type

Receptacle

Montaj Tipi

Through Hole

Reach Svhc

Unknown

Insulation Color

Black

Orientation

Straight

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Insulation Height

0.512 13.00mm

Özellikler

Board Guide

Terminal Adımı

2mm

Contact Materials

Copper Alloy

Terminal

Press-Fit, Solder

Pitch Mating

0.079 2.00mm

Yayın Yılı

2001

Contact Type

Female Socket

Reference Standard

UL

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Contact Length Post

0.130 3.30mm

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Contact Shape

Square
