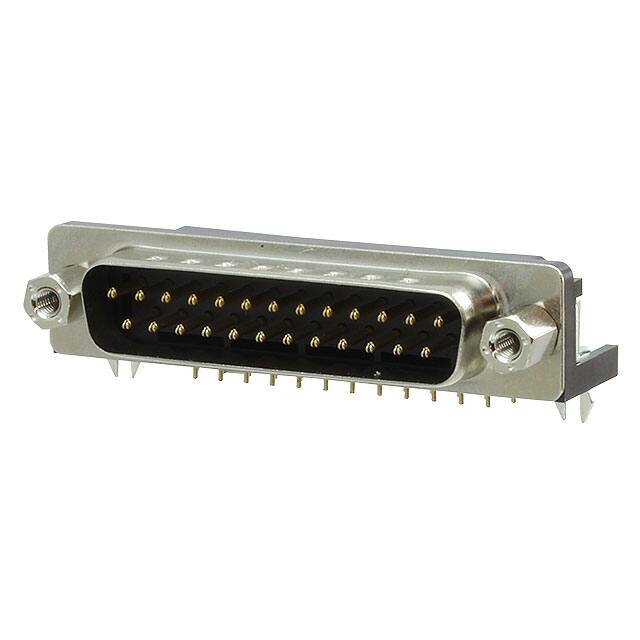

XM2C-2542-132L

Teknik Özellikler

Shell Size Connector Layout

3 DB B

Orientation

Right Angle

Contact Finish Thickness

Flash

HTS Kodu

8536.69.40.30

Connector Type

Plug, Male Pins

Flange Feature

Mating Side, Female Screwlock (4-40)

Insulation Resistance

1000000000Ohm

Total Number Of Contacts

25

Fabrika Tedarik Süresi

19 Weeks

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole, Right Angle

Body Breadth

0.494 inch

Shell Material Finish

Steel, Nickel Plated

Pozisyon Sayısı

25

Contact Finish

Gold

Terminal

Solder

Number Of Pcb Rows

2

ECCN Kodu

EAR99

Reference Standard

UL

Seri

XM2C

Çalışma Sıcaklığı

-25°C~105°C

Nominal Gerilim

300V

Parça Durumu

Active

Yayın Yılı

2006

Body Depth

0.496 inch

Reliability

COMMERCIAL

Pcb Contact Pattern

STAGGERED

Ambalaj

Tray

Dielectric Withstanding Voltage

1000VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Style

D-Sub

Pitch

2.77mm

Contact Materials

Brass

Özellikler

Board Lock, Grounding Indents, Shielded

Akım Değeri

3A

Renk

Black

JESD-609 Kodu

e4

Rated Current Signal

3A

Housing Material

PBT
