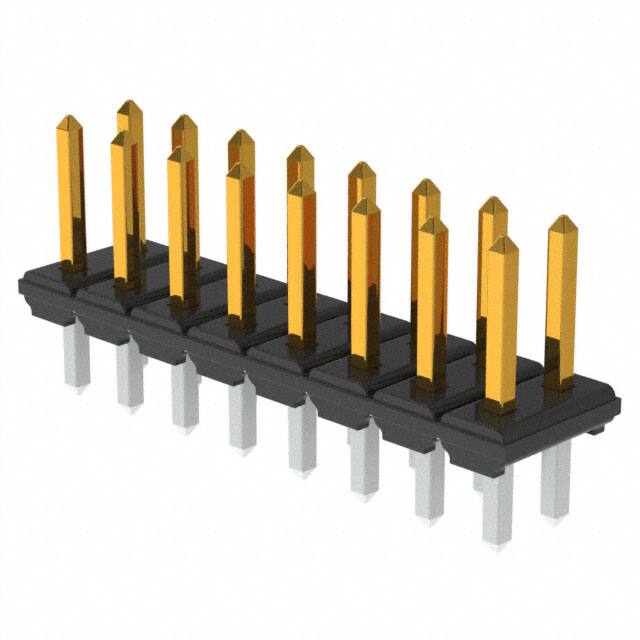

XJ8C-1611

Teknik Özellikler

Contact Finish Thickness Mating

5.90μin 0.150μm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e4

Pitch Mating

0.100 2.54mm

Din Conformance

NO

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~105°C

Max Current Rating

2A

Kurşunsuz

Lead Free

Fastening Type

Push-Pull

Terminal

Solder

Shrouding

Unshrouded

Ul Flammability Code

94V-0

Connector Type

Header

Option

GENERAL PURPOSE

Filter Feature

NO

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.059 1.50mm

Style

Board to Board or Cable

Number Of Positions Loaded

All

Yayın Yılı

2014

Contact Materials

Brass, Nickel

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyphenylene

Kurşunsuz Kodu

yes

Uzunluk

20.3mm

Nominal Gerilim

300V

Contact Shape

Square

Orientation

Straight

Housing Color

Black

Pozisyon Sayısı

16

Depth

5mm

Sıra Sayısı

2

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Contact Length Post

0.110 2.79mm

Mil Conformance

NO

Parça Durumu

Active

Contact Type

Male Pin
