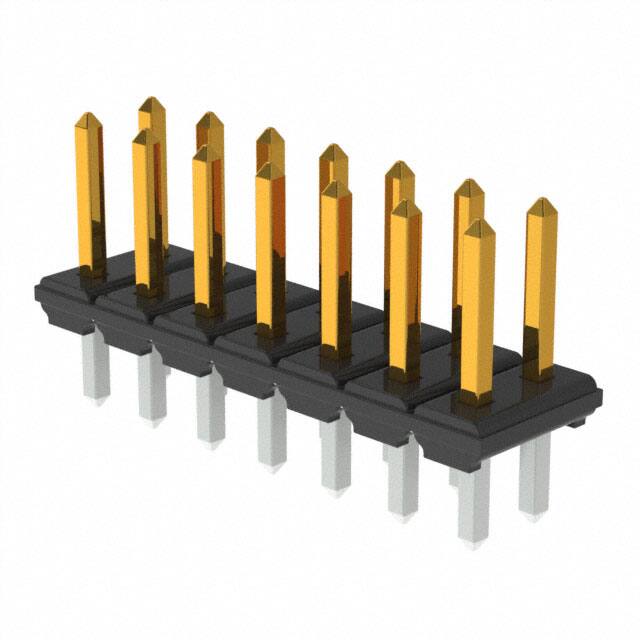

XJ8C-1411

Teknik Özellikler

Contact Lengthmating

0.169 4.30mm

Overall Contact Length

0.339 8.60mm

ECCN Kodu

EAR99

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Seri

XJ8

Montaj Tipi

Through Hole

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Orientation

Straight

Contact Shape

Square

Housing Material

PBT

Kurşunsuz Kodu

yes

Contact Length Post

0.110 2.79mm

Mil Conformance

NO

Sıra Sayısı

2

Pozisyon Sayısı

14

Contact Gender

Male

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Ul Flammability Code

94V-0

Shrouding

Unshrouded

Option

GENERAL PURPOSE

Connector Type

Header

Filter Feature

NO

HTS Kodu

8536.69.40.40

Number Of Positions Loaded

All

Contact Materials

Brass, Nickel

Yayın Yılı

2001

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

2A

Insulation Height

0.059 1.50mm

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Din Conformance

NO

Ambalaj

Bulk
