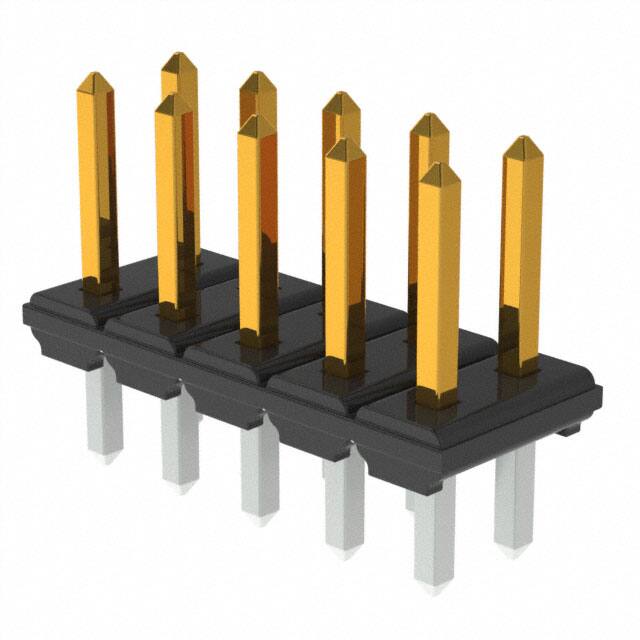

XJ8C-1011

Teknik Özellikler

Fabrika Tedarik Süresi

7 Weeks

Iec Conformance

NO

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Montaj Tipi

Through Hole

Seri

XJ8

ECCN Kodu

EAR99

Overall Contact Length

0.339 8.60mm

Contact Lengthmating

0.169 4.30mm

Contact Finish Mating

Gold

Contact Type

Male Pin

Parça Durumu

Active

Mil Conformance

NO

Contact Length Post

0.110 2.79mm

Contact Gender

Male

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Sıra Sayısı

2

Pozisyon Sayısı

10

Depth

5mm

Housing Color

Black

Contact Shape

Square

Orientation

Straight

Uzunluk

12.7mm

Kurşunsuz Kodu

yes

Housing Material

Polybutylene

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

2A

Contact Materials

Brass, Nickel

Yayın Yılı

2001

Number Of Positions Loaded

All

Style

Board to Board or Cable

Insulation Height

0.059 1.50mm

Row Spacing Mating

0.100 (2.54mm)

Filter Feature

NO

Option

GENERAL PURPOSE

Connector Type

Header

Ul Flammability Code

94V-0

Shrouding

Unshrouded
