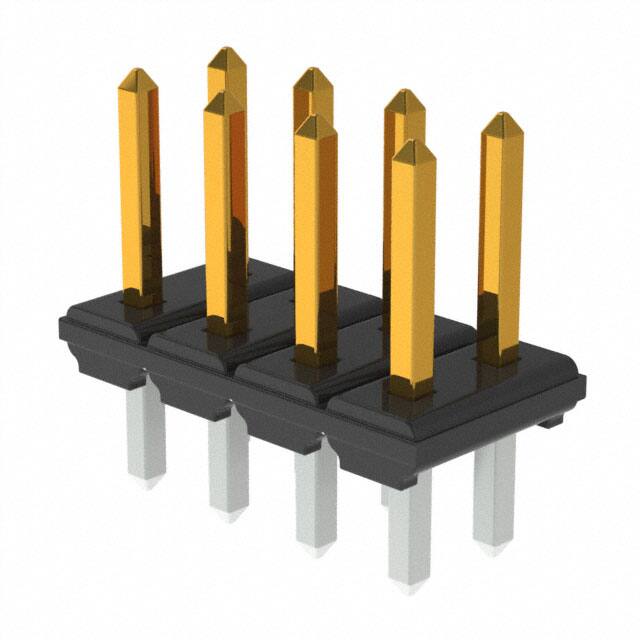

XJ8C-0811

Teknik Özellikler

Insulation Resistance

1GOhm

Filter Feature

NO

Ul Flammability Code

94V-0

Shrouding

Unshrouded

Option

GENERAL PURPOSE

Connector Type

Header

Style

Board to Board or Cable

Insulation Height

0.059 1.50mm

Row Spacing Mating

0.100 (2.54mm)

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Number Of Positions Loaded

All

Contact Materials

Brass, Nickel

Yayın Yılı

2001

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e4

Çalışma Sıcaklığı

-55°C~105°C

Din Conformance

NO

Ambalaj

Bulk

Max Current Rating

2A

Terminal

Solder

Kurşunsuz

Lead Free

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Type

Male Pin

Overall Contact Length

0.339 8.60mm

ECCN Kodu

EAR99

Contact Lengthmating

0.169 4.30mm

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Seri

XJ8

Montaj Tipi

Through Hole

Iec Conformance

NO

Fabrika Tedarik Süresi

9 Weeks
