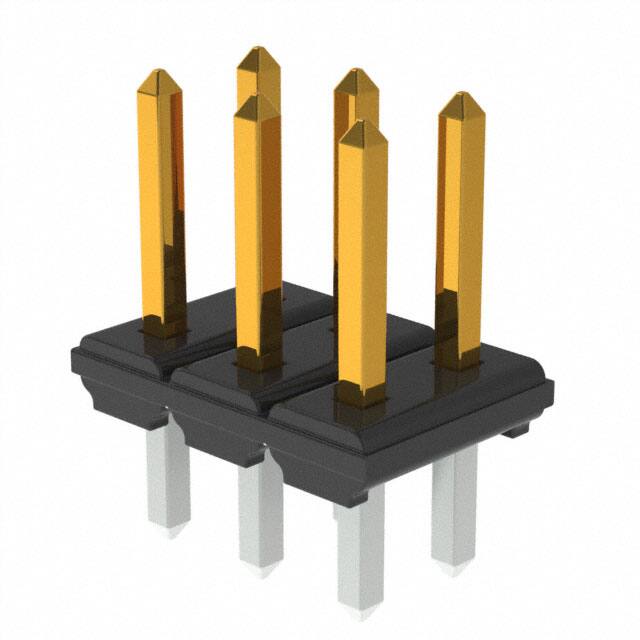

XJ8C-0611

Teknik Özellikler

Uzunluk

7.6mm

Kurşunsuz Kodu

yes

Housing Material

Polyphenylene

Housing Color

Black

Nominal Gerilim

300V

Orientation

Straight

Contact Shape

Square

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Sıra Sayısı

2

Pozisyon Sayısı

6

Depth

5mm

Mil Conformance

NO

Contact Length Post

0.110 2.79mm

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Type

Male Pin

Overall Contact Length

0.339 8.60mm

ECCN Kodu

EAR99

Contact Lengthmating

0.169 4.30mm

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Seri

XJ8

Montaj Tipi

Through Hole

Iec Conformance

NO

Fabrika Tedarik Süresi

7 Weeks

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e4

Montaj

Through Hole

Contact Resistance

20mOhm

Çalışma Sıcaklığı

-55°C~105°C

Din Conformance

NO

Ambalaj

Bulk

Max Current Rating

2A

Terminal

Solder

Kurşunsuz

Lead Free

Fastening Type

Push-Pull

Radyasyon Dayanımı

No

Filter Feature

NO
