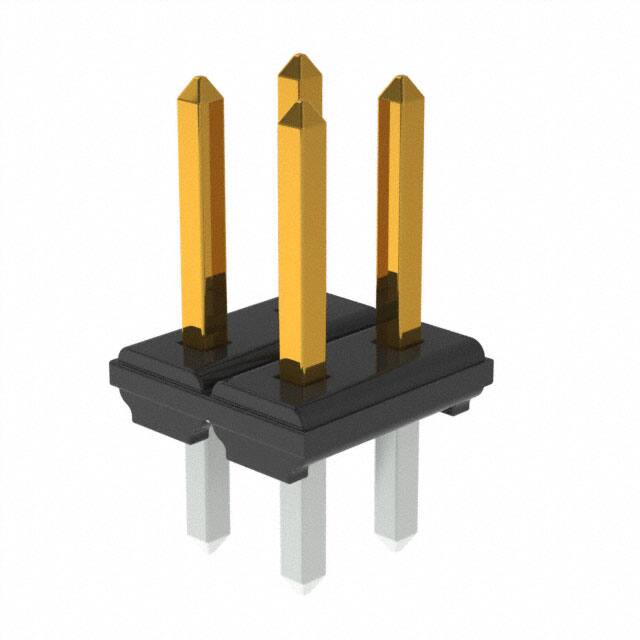

XJ8C-0411

Teknik Özellikler

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Contact Lengthmating

0.169 4.30mm

Overall Contact Length

0.339 8.60mm

ECCN Kodu

EAR99

Seri

XJ8

Montaj Tipi

Through Hole

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Iec Conformance

NO

Housing Material

Polyphenylene

Uzunluk

5.1mm

Kurşunsuz Kodu

yes

Nominal Gerilim

300V

Orientation

Straight

Contact Shape

Square

Housing Color

Black

Sıra Sayısı

2

Depth

5mm

Pozisyon Sayısı

4

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Contact Length Post

0.110 2.79mm

Mil Conformance

NO

Shrouding

Unshrouded

Option

GENERAL PURPOSE

Connector Type

Header

Filter Feature

NO

Insulation Height

0.059 1.50mm

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Number Of Positions Loaded

All

Contact Materials

Brass, Nickel

Yayın Yılı

2003

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm
