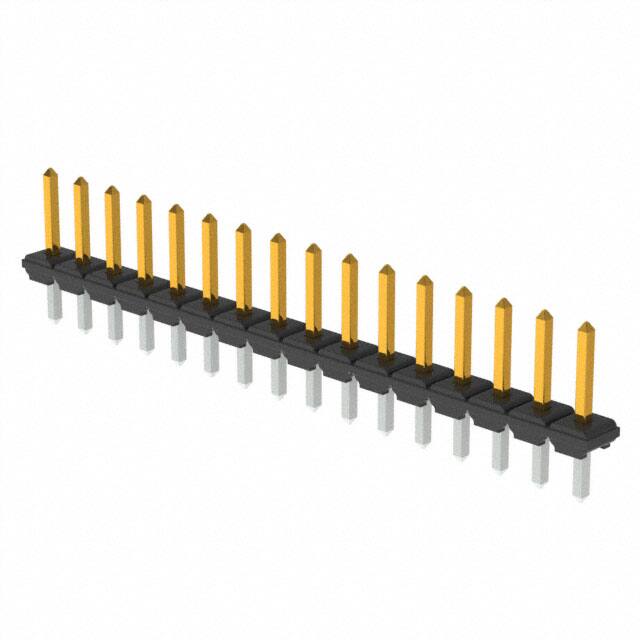

XJ8B-1611

Teknik Özellikler

Terminal

Solder

Mil Conformance

NO

Fastening Type

Push-Pull

Contact Length Post

0.110 2.79mm

Terminal Adımı

2.54mm

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Sıra Sayısı

1

Pozisyon Sayısı

16

Çalışma Sıcaklığı

-55°C~105°C

Insulation Color

Black

Contact Shape

Square

Ambalaj

Bulk

Nominal Gerilim

300V

Din Conformance

NO

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e4

Montaj

Through Hole

Contact Finish Thickness Mating

5.90μin 0.150μm

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

7 Weeks

Yayın Yılı

2014

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Style

Board to Board or Cable

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Insulation Height

0.059 1.50mm

Seri

XJ8

ECCN Kodu

EAR99

Current Rating Amps

2A

Overall Contact Length

0.339 8.60mm

Filter Feature

NO

Option

GENERAL PURPOSE

Connector Type

Header

Ul Flammability Code

94V-0

Shrouding

Unshrouded
