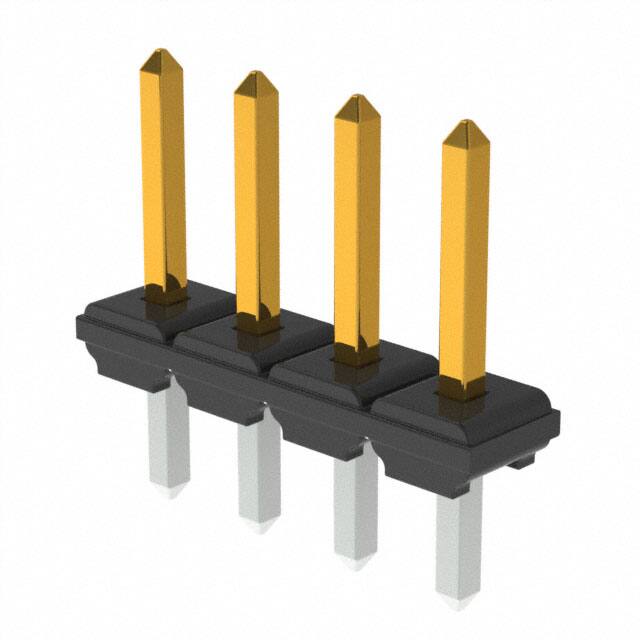

XJ8B-0411

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Number Of Positions Loaded

All

Yayın Yılı

2014

Fabrika Tedarik Süresi

9 Weeks

Contact Materials

Brass, Nickel

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Seri

XJ8

Insulation Height

0.059 1.50mm

Montaj Tipi

Through Hole

Filter Feature

NO

Overall Contact Length

0.339 8.60mm

ECCN Kodu

EAR99

Contact Lengthmating

0.169 4.30mm

Shrouding

Unshrouded

Connector Type

Header

Option

GENERAL PURPOSE

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Type

Male Pin

Mil Conformance

NO

Terminal

Solder

Contact Length Post

0.110 2.79mm

Fastening Type

Push-Pull

Insulation Materials

Polyphenylene Sulfide (PPS), Glass Filled

Depth

2.5mm

Pozisyon Sayısı

4

Sıra Sayısı

1

Max Current Rating

2A

Housing Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Din Conformance

NO

Nominal Gerilim

300V

Contact Shape

Square

Ambalaj

Bulk

Orientation

Straight
