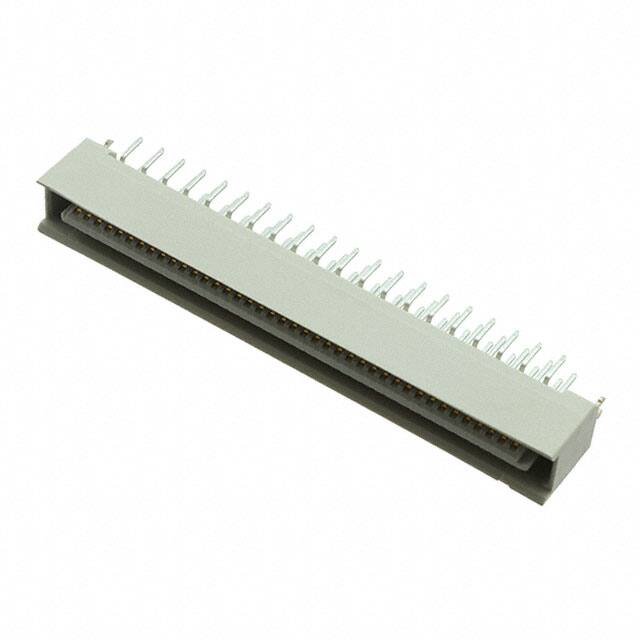

XH3A-8041-A

Teknik Özellikler

Reference Standard

UL

Contact Materials

PHOSPHOR BRONZE

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Dielectric Withstanding Voltage

650VAC V

Yayın Yılı

2001

Pitch

0.050 1.27mm

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Durability

400 Cycles

Withdrawl Forcemin

.10008 N

Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

1.905 mm

Ambalaj

Bulk

Sıra Sayısı

2

Stack Height Mating

12mm 13mm 15mm 16mm

Max Current Rating

500mA

Pcb Contact Pattern

STAGGERED

Max Voltage Rating Ac

125V

Insulator Color

GRAY

Contact Resistance

30mOhm

Terminal

Solder

Length Termination

0.118 inch

Montaj

Through Hole

Maks. Çalışma Sıcaklığı

105°C

Parça Durumu

Active

Özellikler

Board Lock

Contact Finish

Gold

Min. Çalışma Sıcaklığı

-55°C

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Orientation

Straight

Insertion Forcemax

.7784 N

Height Above Board

0.343 8.70mm

Pozisyon Sayısı

80

Total Number Of Contacts

80

Fabrika Tedarik Süresi

13 Weeks

Rated Current Signal

0.5A

Connector Type

Plug, Center Strip Contacts

Seri

XH3
