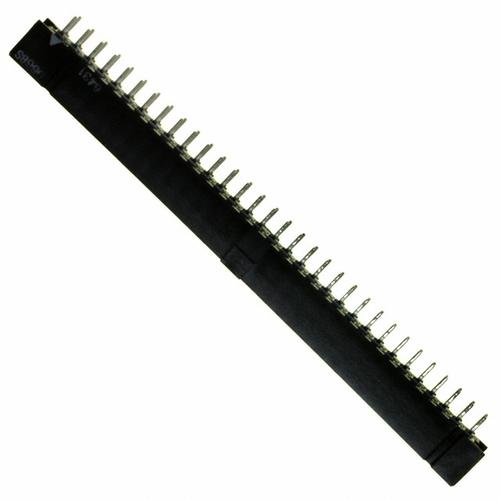

XH3A-3041-2A

Teknik Özellikler

Contact Materials

PHOSPHOR BRONZE

Reference Standard

UL

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Dielectric Withstanding Voltage

650VAC V

Yayın Yılı

2001

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Pitch

0.050 1.27mm

Withdrawl Forcemin

.10008 N

Durability

400 Cycles

Ambalaj

Bulk

Pcb Contact Row Spacing

1.905 mm

Contact Pattern

RECTANGULAR

Stack Height Mating

14mm 15mm 17mm 18mm

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Max Current Rating

500mA

Insulator Color

GRAY

Max Voltage Rating Ac

125V

Contact Resistance

30mOhm

Terminal

Solder

Length Termination

0.118 inch

Maks. Çalışma Sıcaklığı

105°C

Montaj

Through Hole

Özellikler

Board Lock

Parça Durumu

Active

Contact Finish

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-55°C

Montaj Tipi

Through Hole

Insertion Forcemax

.7784 N

Orientation

Straight

Height Above Board

0.421 10.70mm

Pozisyon Sayısı

30

Total Number Of Contacts

30

Fabrika Tedarik Süresi

13 Weeks

Connector Type

Plug, Center Strip Contacts

Rated Current Signal

0.5A

Reliability

COMMERCIAL
