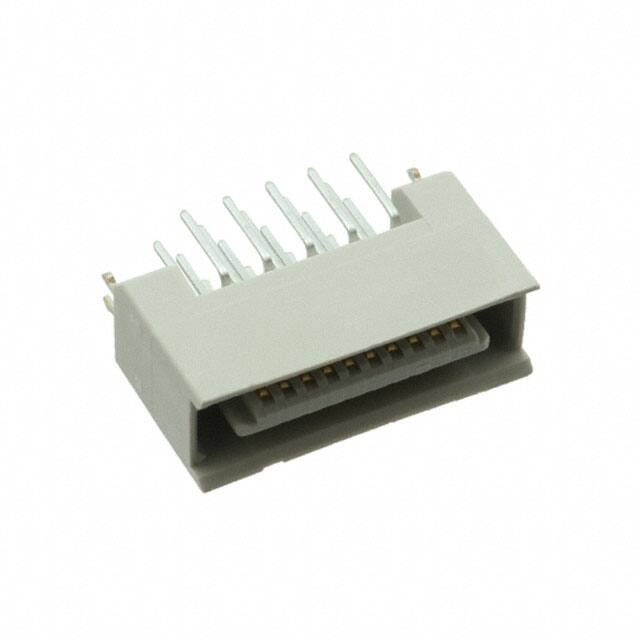

XH3A-2041-2A

Teknik Özellikler

Montaj Tipi

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-55°C

Contact Finish

Gold

Özellikler

Board Lock

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

105°C

Montaj

Through Hole

Length Termination

0.118 inch

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Number Of Conductors

ONE

Seri

XH3

Connector Type

Plug, Center Strip Contacts

Rated Current Signal

0.5A

Fabrika Tedarik Süresi

13 Weeks

Total Number Of Contacts

20

Pozisyon Sayısı

20

Height Above Board

0.421 10.70mm

Insertion Forcemax

.7784 N

Orientation

Straight

Withdrawl Forcemin

.10008 N

Durability

400 Cycles

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Pitch

0.050 1.27mm

Yayın Yılı

1996

Dielectric Withstanding Voltage

650VAC V

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Contact Materials

PHOSPHOR BRONZE

Reference Standard

UL

Contact Resistance

30mOhm

Terminal

Solder

Insulator Color

GRAY

Max Voltage Rating Ac

125V

Pcb Contact Pattern

STAGGERED

Max Current Rating

500mA

Stack Height Mating

14mm 15mm 17mm 18mm

Sıra Sayısı

2
