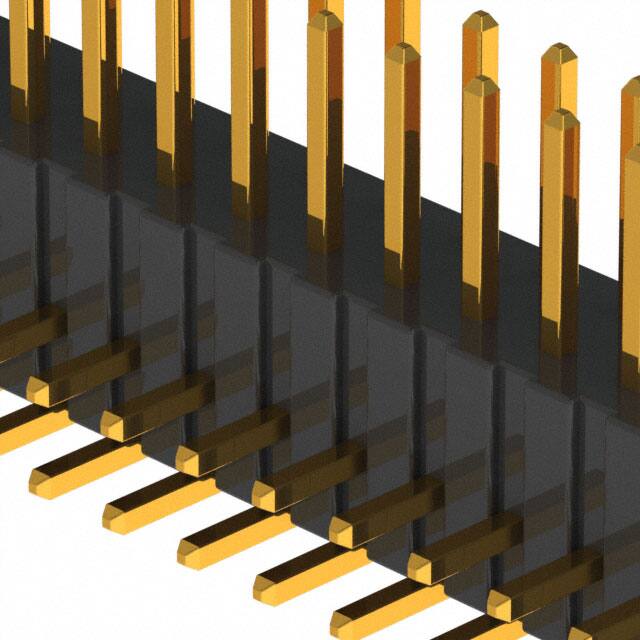

XG8W-5034

Teknik Özellikler

Contact Lengthmating

0.236 6.00mm

Montaj

Through Hole

Mil Conformance

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

1000000000Ohm

Ul Flammability Code

94V-0

Orientation

Right Angle

Connector Type

Header

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Mating

5.90μin 0.150μm

Mixed Contacts

NO

Number Of Positions Loaded

All

Plating Thickness

6μin

Option

GENERAL PURPOSE

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.1 inch

Seri

XG8

Insulation Color

Black

Sıra Sayısı

2

Contact Resistance

20mOhm

Contact Type

Male Pin

JESD-609 Kodu

e3

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Length Termination

0.118 inch

Pitch Mating

0.100 2.54mm

Max Current Rating

3A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reference Standard

UL

Style

Board to Board or Cable

Terminal

Solder
