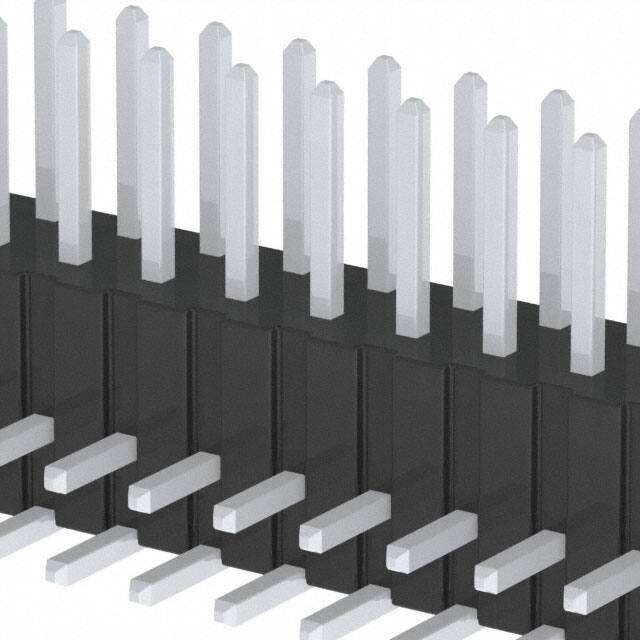

XG8W-4044

Teknik Özellikler

Length Termination

0.118 inch

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Max Current Rating

3A

Terminal

Solder

Filter Feature

NO

Number Of Pcb Rows

2

ECCN Kodu

EAR99

Reference Standard

UL

Style

Board to Board or Cable

Insulation Height

0.236 6.00mm

Contact Shape

Square

Number Of Conductors

ONE

Pozisyon Sayısı

40

Radyasyon Dayanımı

No

Yayın Yılı

2001

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

78.7μin 2.00μm

Shrouding

Unshrouded

Çalışma Sıcaklığı

-55°C~105°C

Nominal Gerilim

300V

Parça Durumu

Active

Rated Current Signal

3A

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Contact Plating

Gold, Tin

Mil Conformance

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Contact Lengthmating

0.236 6.00mm

Montaj

Through Hole

Orientation

Right Angle

Ul Flammability Code

94V-0

Connector Type

Header

Insulation Resistance

1000000000Ohm

Mixed Contacts

NO

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)
