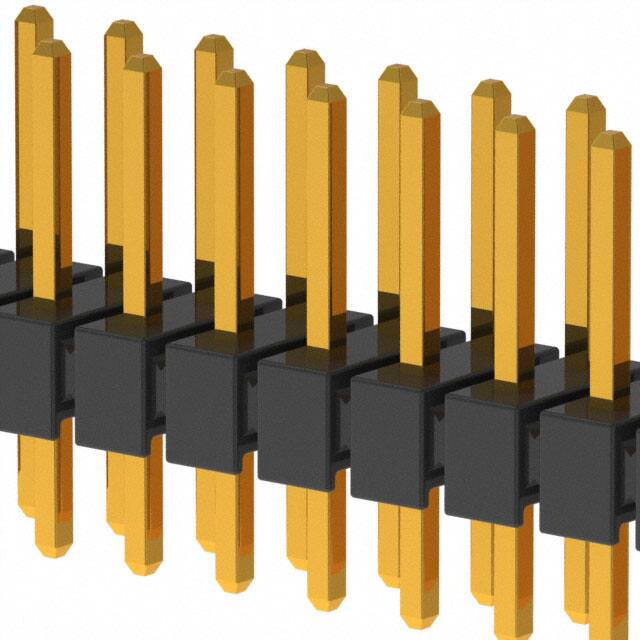

XG8W-4031

Teknik Özellikler

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Mixed Contacts

NO

Number Of Positions Loaded

All

Plating Thickness

6μin

Option

GENERAL PURPOSE

Contact Lengthmating

0.236 6.00mm

Montaj

Through Hole

Mil Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Iec Conformance

NO

Insulation Resistance

1GOhm

Connector Type

Header

Ul Flammability Code

94V-0

Orientation

Straight

Contact Resistance

20mOhm

Contact Type

Male Pin

Sıra Sayısı

2

JESD-609 Kodu

e3

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Din Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Body Depth

0.098 inch

Seri

XG8

Mating Contact Pitch

0.1 inch

Contact Gender

Male

Insulation Color

Black

Style

Board to Board or Cable

Reference Standard

UL

ECCN Kodu

EAR99

Terminal

Solder

Number Of Pcb Rows

2

Filter Feature

NO

Radyasyon Dayanımı

No
