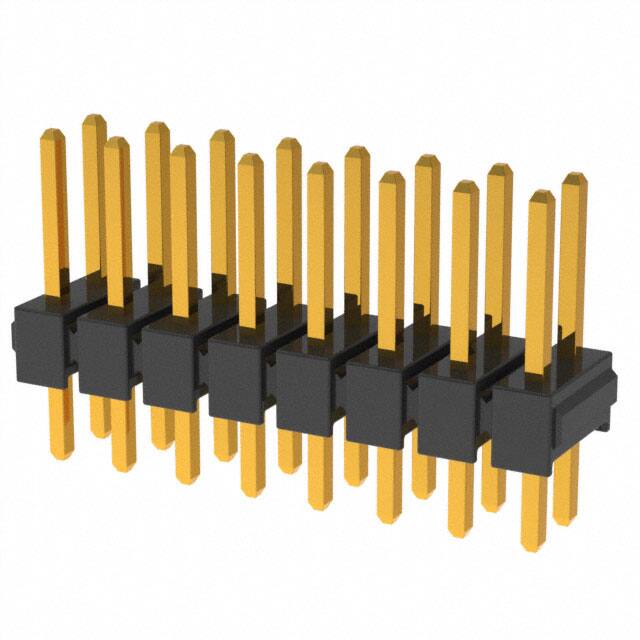

XG8W-1631

Teknik Özellikler

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Body Depth

0.098 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Insulation Color

Black

Seri

XG8

Mating Contact Pitch

0.1 inch

Contact Type

Male Pin

Contact Resistance

20mOhm

Sıra Sayısı

2

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

JESD-609 Kodu

e3

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Mil Conformance

NO

Montaj

Through Hole

Contact Lengthmating

0.236 6.00mm

HTS Kodu

8536.69.40.40

Connector Type

Header

Body Length Or Diameter

0.799 inch

Orientation

Straight

Ul Flammability Code

94V-0

Insulation Resistance

1000000000Ohm

Mixed Contacts

NO

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Option

GENERAL PURPOSE

Plating Thickness

6μin

Yayın Yılı

2001

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Ambalaj

Bulk

Shrouding

Unshrouded

Parça Durumu

Active
