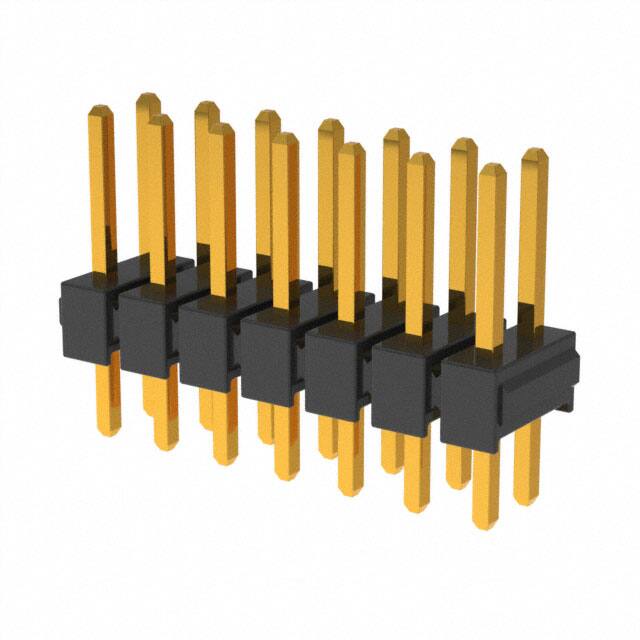

XG8W-1431

Teknik Özellikler

Insulation Resistance

1GOhm

HTS Kodu

8536.69.40.40

Connector Type

Header

Ul Flammability Code

94V-0

Orientation

Straight

Body Length Or Diameter

0.701 inch

Montaj

Through Hole

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

7 Weeks

Iec Conformance

NO

Mil Conformance

NO

Plating Thickness

6μin

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Mixed Contacts

NO

Number Of Positions Loaded

All

Seri

XG8

Mating Contact Pitch

0.1 inch

Contact Gender

Male

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Body Depth

0.098 inch

JESD-609 Kodu

e3

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Type

Male Pin

Contact Resistance

20mOhm

Sıra Sayısı

2

Max Current Rating

3A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm
