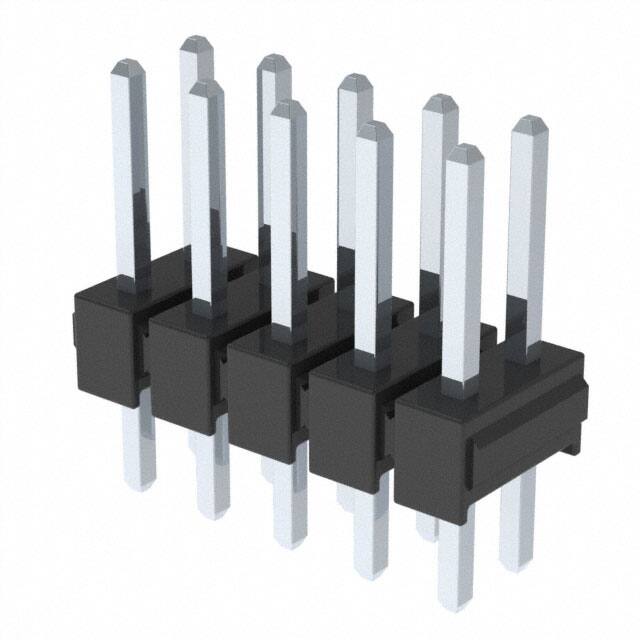

XG8W-1041

Teknik Özellikler

Connector Type

Header

HTS Kodu

8536.69.40.40

Orientation

Straight

Ul Flammability Code

94V-0

Body Length Or Diameter

0.5 inch

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Mil Conformance

NO

Montaj

Through Hole

Contact Lengthmating

0.236 6.00mm

Option

GENERAL PURPOSE

Plating Thickness

79μin

Number Of Positions Loaded

All

Mixed Contacts

NO

Row Spacing Mating

0.100 (2.54mm)

Contact Gender

Male

Insulation Color

Black

Seri

XG8

Mating Contact Pitch

0.1 inch

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Body Depth

0.098 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Dielectric Withstanding Voltage

650VAC V

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Tin

Contact Materials

Brass, Nickel

JESD-609 Kodu

e3

Contact Type

Male Pin

Contact Resistance

20mOhm

Sıra Sayısı

2

Max Current Rating

3A

Pitch Mating

0.100 2.54mm

Length Termination

0.118 inch

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Contact Shape

Square
