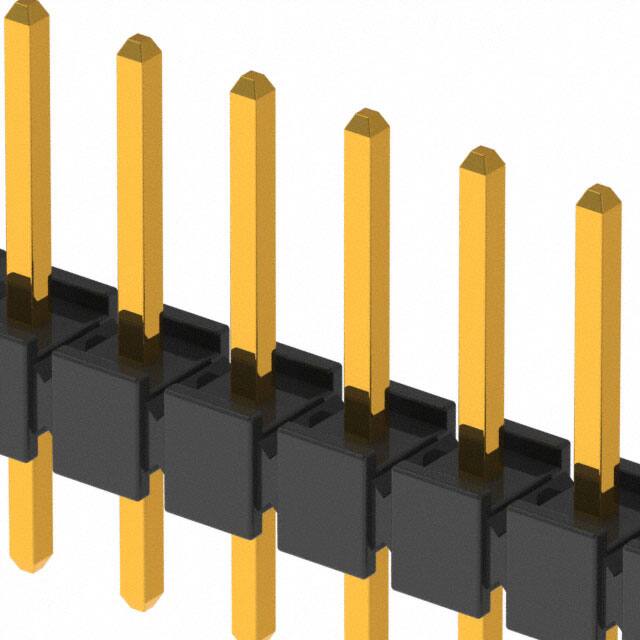

XG8V-0831

Teknik Özellikler

Insulation Height

0.098 2.50mm

Contact Shape

Square

Number Of Conductors

ONE

Pozisyon Sayısı

8

Radyasyon Dayanımı

No

Number Of Pcb Rows

1

Terminal

Solder

Reference Standard

UL

Style

Board to Board or Cable

Max Current Rating

3A

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Overall Contact Length

0.453 11.50mm

Akım Değeri

3A

Rated Current Signal

3A

Housing Material

PBT

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Shrouding

Unshrouded

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Yayın Yılı

2001

Ambalaj

Bulk

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Plating Thickness

6μin

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Body Length Or Diameter

0.799 inch

Orientation

Straight

Connector Type

Header

Fabrika Tedarik Süresi

9 Weeks

Montaj

Through Hole

Contact Lengthmating

0.236 6.00mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Length Post

0.118 3.00mm

JESD-609 Kodu

e3

Sıra Sayısı

1
