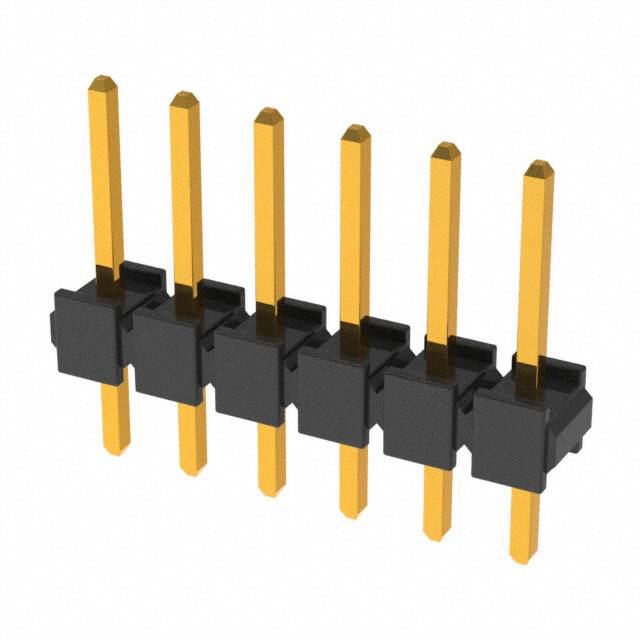

XG8V-0631

Teknik Özellikler

Contact Finish Thickness Mating

5.90μin 0.150μm

Number Of Positions Loaded

All

Insulation Resistance

1GOhm

Connector Type

Header

Body Length Or Diameter

0.598 inch

Montaj

Through Hole

Contact Lengthmating

0.236 6.00mm

Fabrika Tedarik Süresi

7 Weeks

JESD-609 Kodu

e3

Contact Length Post

0.118 3.00mm

Contact Materials

Brass, Nickel

Contact Finish Mating

Gold

Contact Type

Male Pin

Contact Resistance

20mOhm

Sıra Sayısı

1

Seri

XG8

Contact Gender

Male

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Body Depth

0.098 inch

Terminal Adımı

2.54mm

Radyasyon Dayanımı

No

Number Of Conductors

ONE

Pozisyon Sayısı

6

Contact Shape

Square

Insulation Height

0.098 2.50mm

Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Reference Standard

UL

Number Of Pcb Rows

1

Terminal

Solder

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Akım Değeri

3A

Overall Contact Length

0.453 11.50mm

RoHS Durumu

RoHS Compliant
