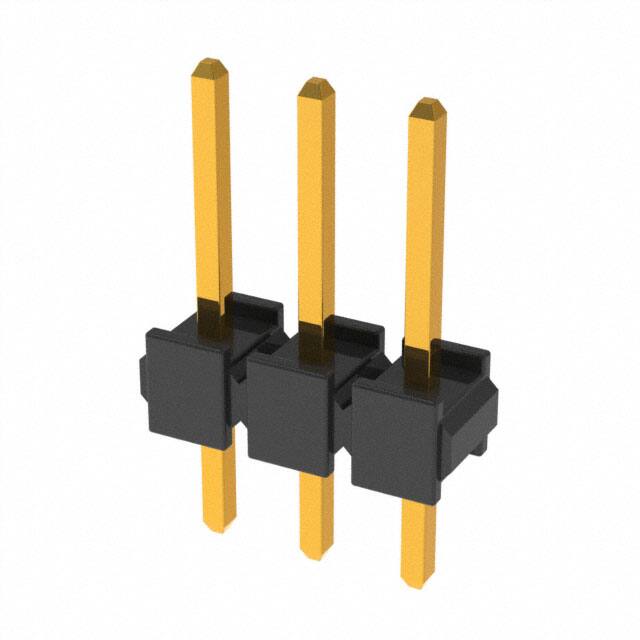

XG8V-0331

Teknik Özellikler

Number Of Conductors

ONE

Pozisyon Sayısı

3

Plating Thickness

6μin

Insulation Height

0.098 2.50mm

Contact Shape

Square

Reference Standard

UL

Contact Finish Thickness Mating

5.90μin 0.150μm

Style

Board to Board or Cable

Terminal

Solder

Number Of Pcb Rows

1

Number Of Positions Loaded

All

Body Length Or Diameter

0.299 inch

Current Rating Amps

3A

Connector Type

Header

Contact Lengthmating

0.236 6.00mm

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

8 Weeks

Overall Contact Length

0.453 11.50mm

JESD-609 Kodu

e3

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Length Post

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Sıra Sayısı

1

Contact Resistance

20mOhm

Contact Type

Male Pin

Seri

XG8

Nominal Gerilim

300V

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Insulation Color

Black

Shrouding

Unshrouded

Ambalaj

Bulk

Dielectric Withstanding Voltage

650VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

5.90μin 0.150μm
