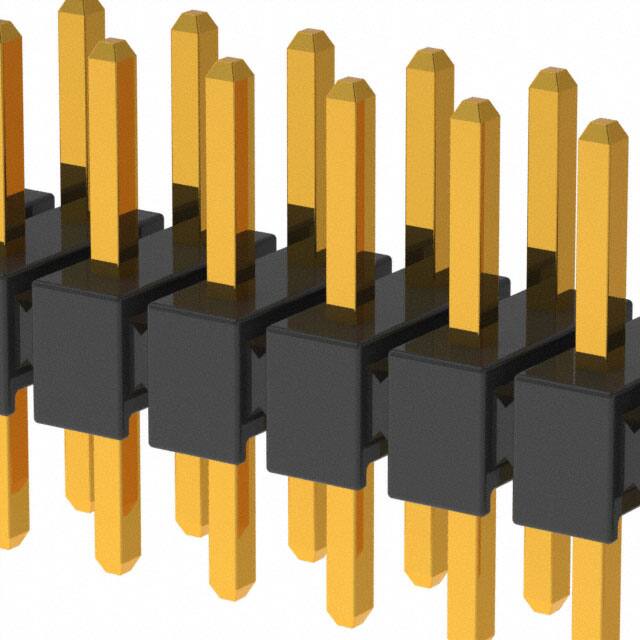

XG8T-1831

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Connector Type

Header

Current Rating Amps

2A

Montaj Tipi

Through Hole

Montaj

Through Hole

Contact Lengthmating

0.169 4.30mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.100 2.54mm

Pozisyon Sayısı

18

Number Of Conductors

ONE

Contact Shape

Square

Body Breadth

0.197 inch

Insulation Height

0.098 2.50mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Style

Board to Board or Cable

Reference Standard

UL

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Number Of Pcb Rows

2

Terminal

Solder

Parça Durumu

Active

Nominal Gerilim

300V

Çalışma Sıcaklığı

-55°C~105°C

Mating Contact Pitch

0.1 inch

Seri

XG8

Shrouding

Unshrouded

Insulation Color

Black

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

750VAC V

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Body Depth

0.098 inch

Yayın Yılı

2014

Overall Contact Length

0.386 9.80mm
