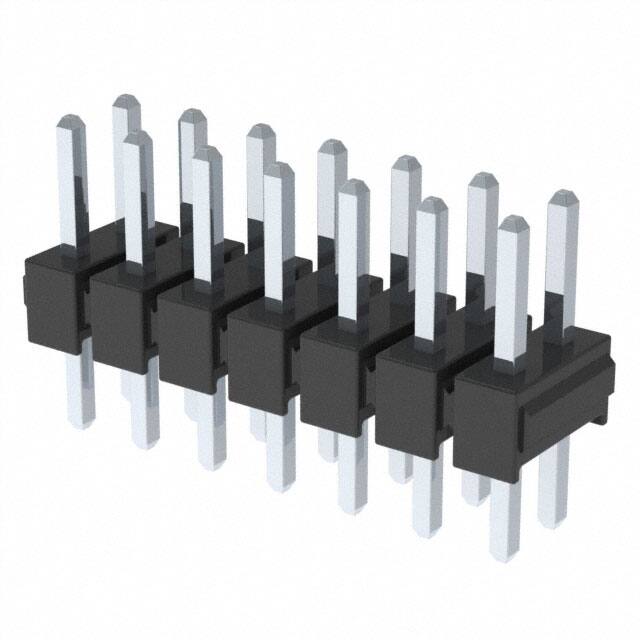

XG8T-1441

Teknik Özellikler

Pozisyon Sayısı

14

Number Of Conductors

ONE

Insulation Height

0.098 2.50mm

Contact Shape

Square

Body Breadth

0.197 inch

Row Spacing Mating

0.100 (2.54mm)

Reference Standard

UL

Style

Board to Board or Cable

Number Of Pcb Rows

2

Terminal

Solder

Number Of Positions Loaded

All

Insulation Resistance

1000000000Ohm

Current Rating Amps

2A

Connector Type

Header

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.169 4.30mm

Montaj Tipi

Through Hole

Length Termination

0.118 inch

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

9 Weeks

Overall Contact Length

0.386 9.80mm

Contact Materials

Brass, Nickel

Contact Finish Mating

Tin

Contact Length Post

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Contact Type

Male Pin

Nominal Gerilim

300V

Çalışma Sıcaklığı

-55°C~105°C

Mating Contact Pitch

0.1 inch

Seri

XG8

Parça Durumu

Active

Insulation Color

Black

Shrouding

Unshrouded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

750VAC V

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Body Depth

0.098 inch
