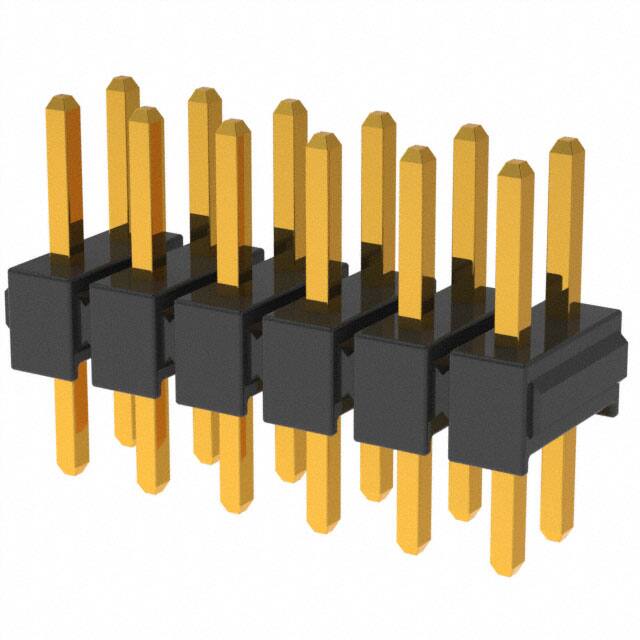

XG8T-1231

Teknik Özellikler

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Length Termination

0.118 inch

Style

Board to Board or Cable

Reference Standard

UL

Terminal

Solder

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Pozisyon Sayısı

12

Number Of Conductors

ONE

Body Breadth

0.197 inch

Contact Shape

Square

Insulation Height

0.098 2.50mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

5.90μin 0.150μm

Ambalaj

Bulk

Yayın Yılı

2014

Parça Durumu

Active

Nominal Gerilim

300V

Çalışma Sıcaklığı

-55°C~105°C

Shrouding

Unshrouded

RoHS Durumu

RoHS Compliant

Rated Current Signal

2A

Housing Material

PBT

Akım Değeri

2A

Overall Contact Length

0.386 9.80mm

Contact Lengthmating

0.169 4.30mm

Montaj

Through Hole

Fabrika Tedarik Süresi

8 Weeks

Insulation Resistance

1GOhm

Connector Type

Header

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

750VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Pcb Contact Pattern

RECTANGULAR
