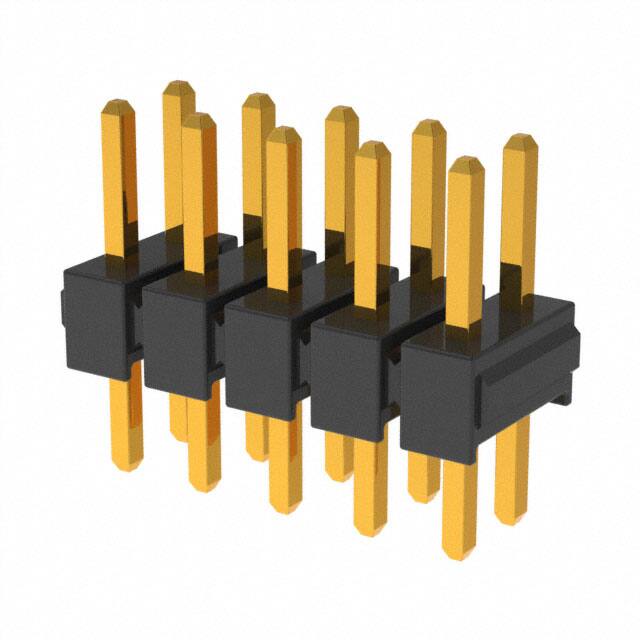

XG8T-1031

Teknik Özellikler

Contact Length Post

0.118 3.00mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Type

Male Pin

Contact Resistance

20mOhm

Sıra Sayısı

2

Contact Gender

Male

Insulation Color

Black

Mating Contact Pitch

0.1 inch

Seri

XG8

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Body Depth

0.098 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

750VAC V

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Orientation

Straight

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

9 Weeks

Number Of Contacts

20

Montaj

Through Hole

Contact Lengthmating

0.169 4.30mm

Akım Değeri

2A

Overall Contact Length

0.386 9.80mm

Rated Current Signal

2A

Housing Material

PBT

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Yayın Yılı

2001

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Ambalaj

Bulk

Contact Shape

Square
