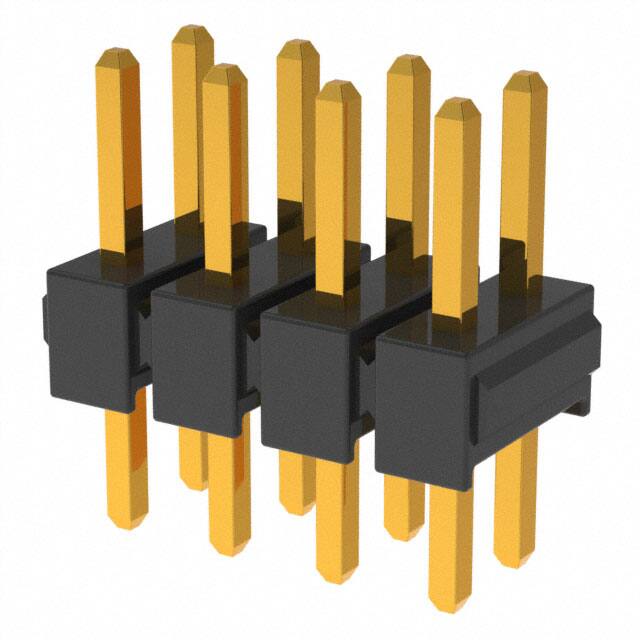

XG8T-0831

Teknik Özellikler

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Max Current Rating

2A

ECCN Kodu

EAR99

Terminal

Solder

Number Of Pcb Rows

2

Style

Board to Board or Cable

Reference Standard

UL

Body Breadth

0.197 inch

Contact Shape

Square

Insulation Height

0.098 2.50mm

Radyasyon Dayanımı

No

Number Of Conductors

ONE

Pozisyon Sayısı

8

Yayın Yılı

2001

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

5.90μin 0.150μm

Ambalaj

Bulk

Shrouding

Unshrouded

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Housing Material

PBT

Rated Current Signal

2A

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Overall Contact Length

0.386 9.80mm

Akım Değeri

2A

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.169 4.30mm

Montaj

Through Hole

Connector Type

Header

Orientation

Straight

Insulation Resistance

1000000000Ohm

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull
