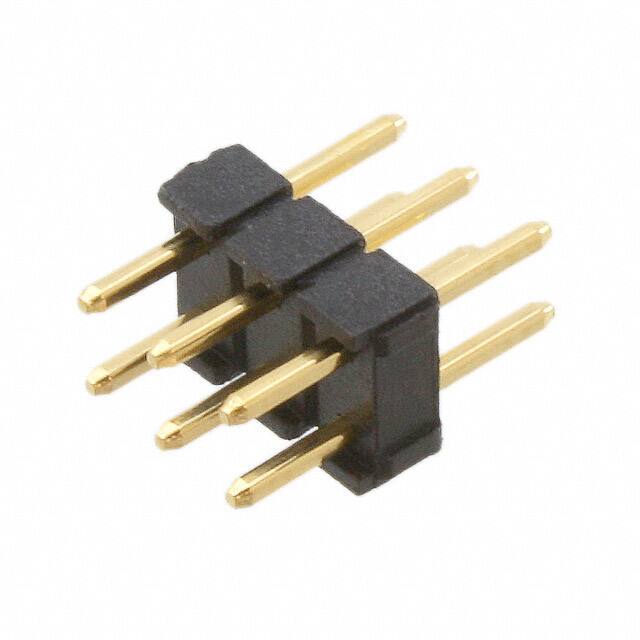

XG8T-0631

Teknik Özellikler

Overall Contact Length

0.386 9.80mm

Akım Değeri

2A

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Housing Material

Polybutylene

Rated Current Signal

2A

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Shrouding

Unshrouded

Ambalaj

Bulk

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Yayın Yılı

2001

Number Of Conductors

ONE

Pozisyon Sayısı

6

Radyasyon Dayanımı

No

Insulation Height

0.098 2.50mm

Contact Shape

Square

Body Breadth

0.197 inch

Reference Standard

UL

Style

Board to Board or Cable

Number Of Pcb Rows

2

Terminal

Solder

ECCN Kodu

EAR99

Max Current Rating

2A

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Length Post

0.118 3.00mm

Sıra Sayısı

2

Contact Type

Male Pin

Contact Resistance

20mOhm

Seri

XG8

Mating Contact Pitch

0.1 inch

Contact Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

750VAC V

Pcb Contact Pattern

RECTANGULAR
