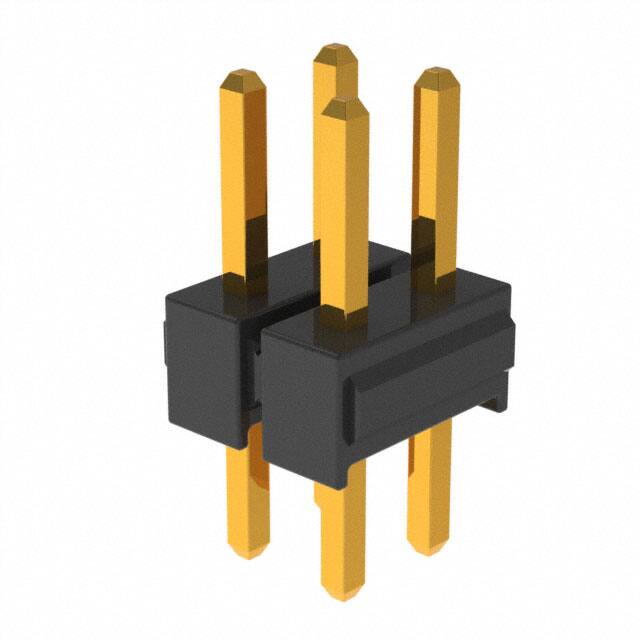

XG8T-0431

Teknik Özellikler

Contact Length Post

0.118 3.00mm

Contact Materials

Brass, Nickel

Contact Finish Mating

Gold

Contact Type

Male Pin

Sıra Sayısı

2

Contact Gender

Male

Insulation Color

Black

Mating Contact Pitch

0.1 inch

Seri

XG8

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Push-Pull

Body Depth

0.098 inch

Dielectric Withstanding Voltage

750VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Connector Type

Header

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

9 Weeks

Contact Lengthmating

0.169 4.30mm

Montaj

Through Hole

Overall Contact Length

0.386 9.80mm

Akım Değeri

2A

Housing Material

PBT

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Parça Durumu

Active

Nominal Gerilim

300V

Çalışma Sıcaklığı

-55°C~105°C

Yayın Yılı

2014

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

5.90μin 0.150μm

Ambalaj

Bulk

Body Breadth

0.197 inch

Contact Shape

Square

Insulation Height

0.098 2.50mm
