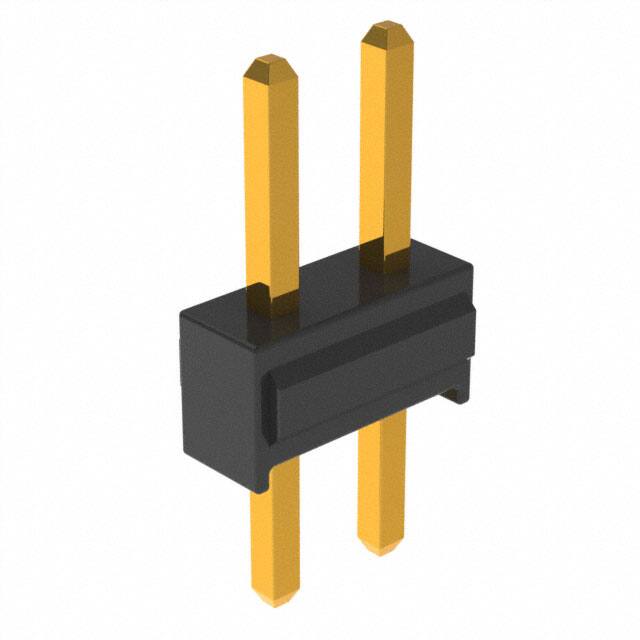

XG8T-0231

Teknik Özellikler

Kurşunsuz

Lead Free

Shrouding

Unshrouded

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Yayın Yılı

2001

Ambalaj

Bulk

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Pitch

2.54mm

Akım Değeri

2A

Overall Contact Length

0.386 9.80mm

Rated Current Signal

2A

Housing Material

Polybutylene

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Max Current Rating

2A

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Insulation Height

0.098 2.50mm

Contact Shape

Square

Body Breadth

0.197 inch

Number Of Conductors

ONE

Pozisyon Sayısı

2

Radyasyon Dayanımı

No

Number Of Pcb Rows

2

Terminal

Solder

Reference Standard

UL

Style

Board to Board or Cable

Seri

XG8

Pcb Contact Pattern

RECTANGULAR

Housing Color

Black

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

750VAC V

Contact Finish Mating

Gold

Contact Materials

Brass, Nickel

Contact Length Post

0.118 3.00mm

Sıra Sayısı

2

Contact Type

Male Pin
