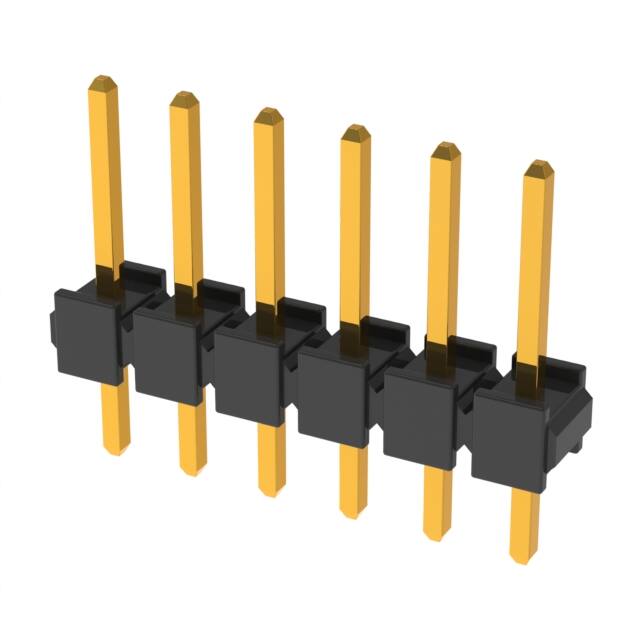

XG8S-0631

Teknik Özellikler

Number Of Conductors

ONE

Pozisyon Sayısı

6

Contact Shape

Square

Insulation Height

0.098 2.50mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Style

Board to Board or Cable

Reference Standard

UL

Number Of Positions Loaded

All

Number Of Pcb Rows

1

Terminal

Solder

Insulation Resistance

1GOhm

Connector Type

Header

Montaj Tipi

Through Hole

Montaj

Through Hole

Contact Lengthmating

0.169 4.30mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.100 2.54mm

Overall Contact Length

0.386 9.80mm

Akım Değeri

2A

Contact Length Post

0.118 3.00mm

Contact Materials

Brass, Nickel

Contact Finish Mating

Gold

RoHS Durumu

RoHS Compliant

Contact Type

Male Pin

Contact Resistance

20mOhm

Rated Current Signal

2A

Housing Material

PBT

Sıra Sayısı

1

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Nominal Gerilim

300V

Seri

XG8

Shrouding

Unshrouded

Contact Gender

Male

Insulation Color

Black

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk
