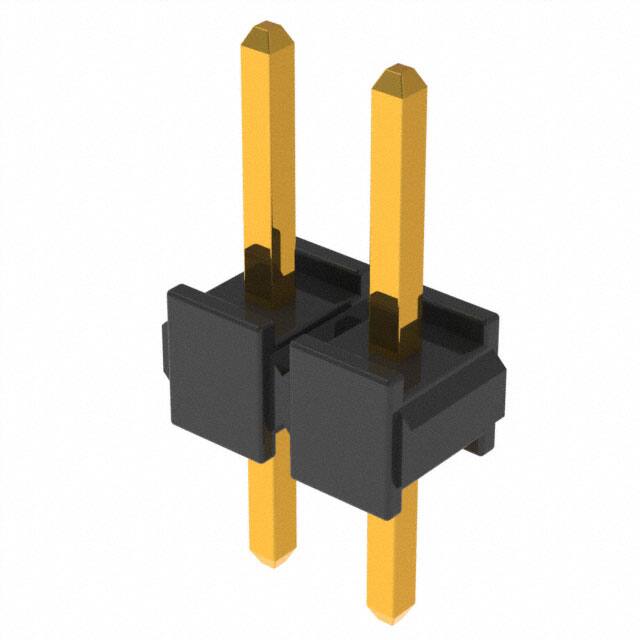

XG8S-0231

Teknik Özellikler

Pitch Mating

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Max Current Rating

2A

Number Of Pcb Rows

1

Terminal

Solder

ECCN Kodu

EAR99

Reference Standard

UL

Style

Board to Board or Cable

Insulation Height

0.098 2.50mm

Contact Shape

Square

Pozisyon Sayısı

2

Number Of Conductors

ONE

Radyasyon Dayanımı

No

Yayın Yılı

2001

Ambalaj

Bulk

Contact Finish Thickness Post

5.90μin 0.150μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Shrouding

Unshrouded

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Housing Material

Polybutylene

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Akım Değeri

2A

Overall Contact Length

0.386 9.80mm

Fabrika Tedarik Süresi

8 Weeks

Montaj

Through Hole

Contact Lengthmating

0.169 4.30mm

Orientation

Straight

Depth

2.8mm

Uzunluk

5.1mm

Connector Type

Header

Number Of Positions Loaded

All

Contact Finish Thickness Mating

5.90μin 0.150μm

Fastening Type

Push-Pull

Housing Color

Black

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL
