Adet bazlı fiyat
- 1+ adet$10.73
- 10+ adet$10.12
- 100+ adet$9.55
- 500+ adet$9.01
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

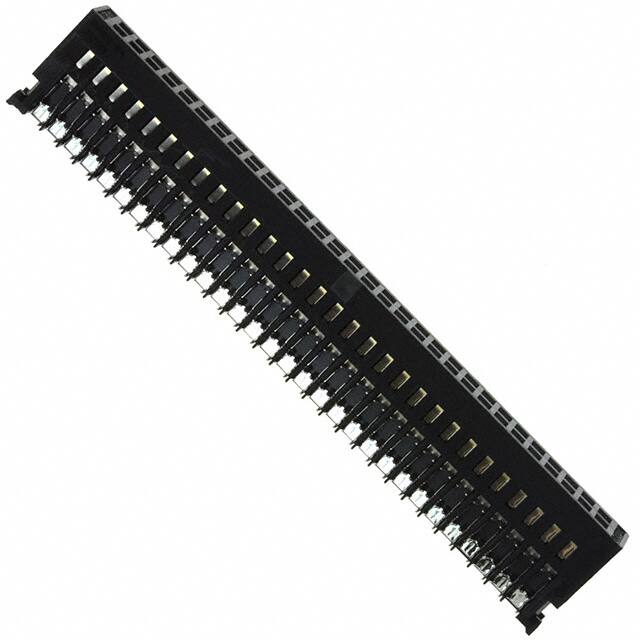

Teknik Özellikler
- Min. Çalışma Sıcaklığı
- -55°C
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Contact Finish
- Gold
- Plating Thickness
- 6μin
- Iec Conformance
- NO
- Fabrika Tedarik Süresi
- 12 Weeks
- Total Number Of Contacts
- 60
- Mil Conformance
- NO
- Montaj
- Free Hanging
- Ul Flammability Code
- 94V-0
- Orientation
- Straight
- Body Length Or Diameter
- 3.181 inch
- Connector Type
- Receptacle
- Insulation Resistance
- 1000000000Ohm
- Sıra Sayısı
- 2
- Wire Type
- Discrete
- Contact Type
- Female Socket
- Contact Materials
- Bronze
- Özellikler
- Closed End, Polarizing Key
- Body Depth
- 0.567 inch
- Reliability
- COMMERCIAL
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Din Conformance
- NO
- Dielectric Withstanding Voltage
- 650VAC V
- Contact Gender
- Female
- Seri
- XG5
- Filter Feature
- NO
- Terminal
- Wire
- Reference Standard
- UL
- Pozisyon Sayısı
- 60
- Radyasyon Dayanımı
- No
- Montaj Tipi
- Free Hanging (In-Line)
- Contact Finish Thickness
- 5.90μin 0.150μm
- Max Current Rating
- 3A
- Additional Feature
- POLARISED
- Rated Current Signal
- 3A
- Housing Material
- PBT
- Cable Termination
- IDC
- RoHS Durumu
- RoHS Compliant
