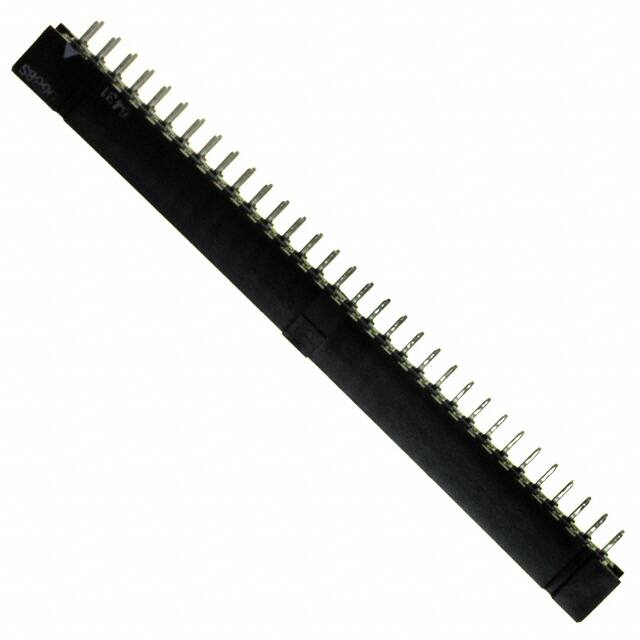

XG4H-6031

Teknik Özellikler

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Contact Resistance

20mOhm

Sıra Sayısı

2

Housing Material

PBT

JESD-609 Kodu

e3

Akım Değeri

3A

Contact Length Post

0.122 3.10mm

Özellikler

Polarizing Key

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Fastening Type

Latch Holder

Yayın Yılı

2002

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~105°C

Nominal Gerilim

300VAC

Seri

XG4

Contact Finish Post

Tin

Insulation Color

Black

Contact Finish Thickness Mating

5.90μin 0.150μm

Style

Board to Board

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

Stack Height Mating

9.7mm 10.1mm

Terminal

Solder

Pozisyon Sayısı

60

Contact Shape

Square

Insulation Height

0.283 7.19mm

Montaj Tipi

Through Hole

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.100 2.54mm

Insulation Resistance

1GOhm

Max Current Rating

3A
