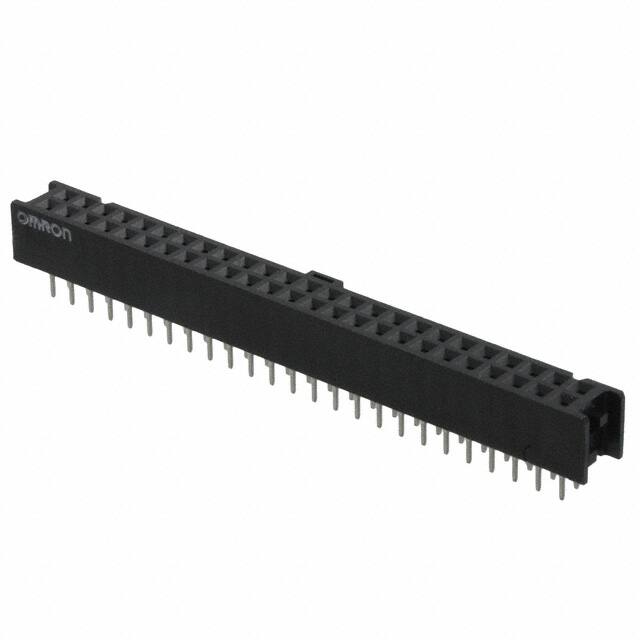

XG4H-5031

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Housing Material

PBT

Sıra Sayısı

2

Contact Resistance

20mOhm

Contact Type

Female Socket

Akım Değeri

3A

JESD-609 Kodu

e3

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Özellikler

Polarizing Key

Contact Length Post

0.122 3.10mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

78.7μin 2.00μm

Yayın Yılı

2002

Fastening Type

Latch Holder

Seri

XG4

Nominal Gerilim

300VAC

Çalışma Sıcaklığı

-55°C~105°C

Parça Durumu

Active

Insulation Color

Black

Contact Finish Post

Tin

Kurşunsuz

Lead Free

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board

Contact Finish Thickness Mating

5.90μin 0.150μm

Terminal

Solder

Stack Height Mating

9.7mm 10.1mm

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Pozisyon Sayısı

50

Radyasyon Dayanımı

No

Insulation Height

0.283 7.19mm

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm
