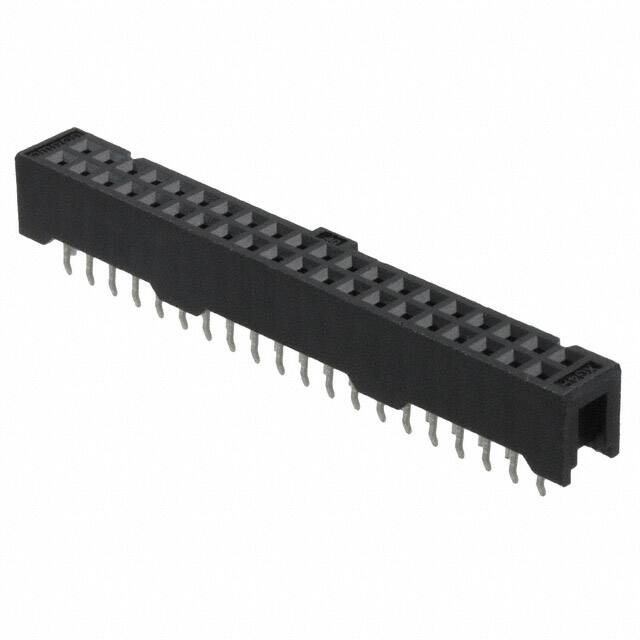

XG4H-4031-1

Teknik Özellikler

Contact Resistance

20mOhm

Contact Type

Female Socket

Sıra Sayısı

2

Housing Material

PBT

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Özellikler

Polarizing Key

Contact Length Post

0.122 3.10mm

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

JESD-609 Kodu

e3

Akım Değeri

3A

Fastening Type

Latch Holder

Yayın Yılı

2002

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

78.7μin 2.00μm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Contact Finish Post

Tin

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

XG4

Nominal Gerilim

300VAC

Çalışma Sıcaklığı

-55°C~105°C

Stack Height Mating

9.7mm 10.1mm

Number Of Positions Loaded

All

Terminal

Press-Fit, Solder

Style

Board to Board

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Contact Shape

Square

Insulation Height

0.283 7.19mm

Radyasyon Dayanımı

No

Pozisyon Sayısı

40

Fabrika Tedarik Süresi

9 Weeks

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Montaj

Through Hole
