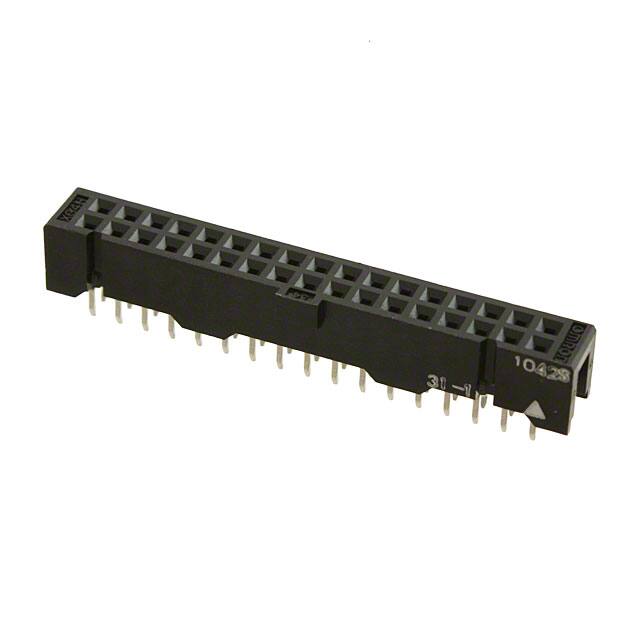

XG4H-3431-1

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Yayın Yılı

2002

Fastening Type

Latch Holder

Housing Color

Black

Nominal Gerilim

300VAC

Çalışma Sıcaklığı

-55°C~105°C

Seri

XG4

Parça Durumu

Active

Kurşunsuz

Lead Free

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Sıra Sayısı

2

Housing Material

Polybutylene

Contact Type

Female Socket

Contact Resistance

20mOhm

Akım Değeri

3A

JESD-609 Kodu

e3

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

Contact Length Post

0.122 3.10mm

Özellikler

Polarizing Key

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

9 Weeks

Insulation Resistance

1GOhm

Max Current Rating

3A

Orientation

Straight

Depth

7.1mm

Connector Type

Receptacle

Uzunluk

47.7mm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Mating

5.90μin 0.150μm

Style

Board to Board

Terminal

Press-Fit, Solder
