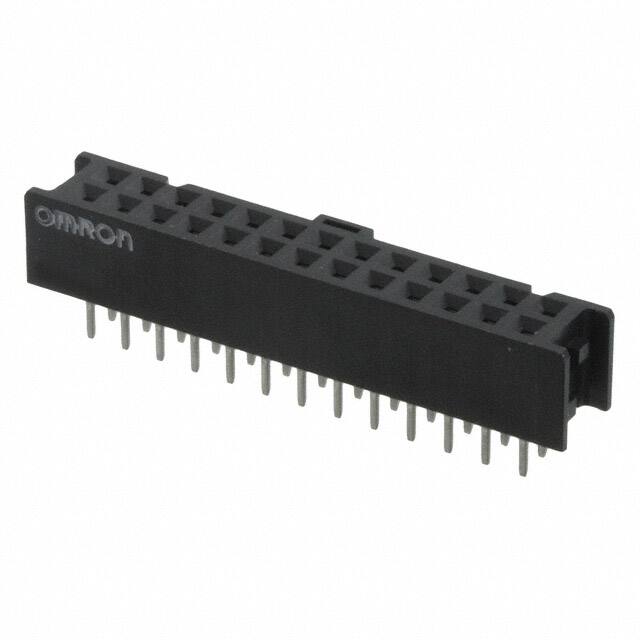

XG4H-2631

Teknik Özellikler

Contact Finish Post

Tin

Insulation Color

Black

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

XG4

Nominal Gerilim

300VAC

Çalışma Sıcaklığı

-55°C~105°C

Fastening Type

Latch Holder

Yayın Yılı

2002

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Thickness Post

78.7μin 2.00μm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.122 3.10mm

Özellikler

Polarizing Key

Contact Materials

Phosphor Bronze

Contact Finish Mating

Gold

JESD-609 Kodu

e3

Akım Değeri

3A

Contact Resistance

20mOhm

Contact Type

Female Socket

Housing Material

PBT

Sıra Sayısı

2

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Connector Type

Receptacle

Orientation

Straight

Max Current Rating

3A

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

8 Weeks

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Contact Shape

Square

Insulation Height

0.283 7.19mm

Radyasyon Dayanımı

No

Pozisyon Sayısı

26

Stack Height Mating

9.7mm 10.1mm

Number Of Positions Loaded

All
