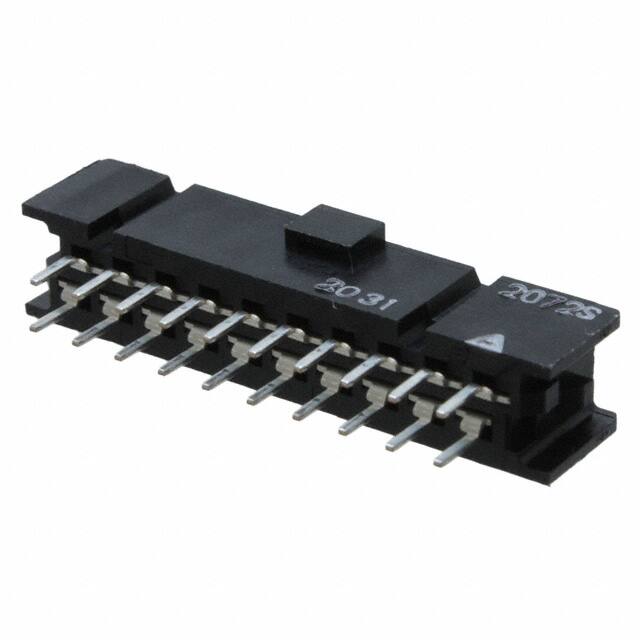

XG4H-2031

Teknik Özellikler

Radyasyon Dayanımı

No

Pozisyon Sayısı

20

Contact Shape

Square

Insulation Height

0.283 7.19mm

Style

Board to Board

Contact Finish Thickness Mating

5.90μin 0.150μm

Row Spacing Mating

0.100 (2.54mm)

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Stack Height Mating

9.7mm 10.1mm

Terminal

Solder

Insulation Resistance

1GOhm

Max Current Rating

3A

Depth

7.1mm

Uzunluk

30mm

Connector Type

Receptacle

HTS Kodu

8536.69.40.40

Orientation

Straight

Montaj Tipi

Through Hole

Montaj

Through Hole

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

12 Weeks

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Akım Değeri

3A

Özellikler

Polarizing Key

Contact Length Post

0.122 3.10mm

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

300V

RoHS Durumu

RoHS Compliant

Contact Type

Female Socket

Contact Resistance

20mOhm

Housing Material

Polybutylene

Sıra Sayısı

2

Parça Durumu

Active

Nominal Gerilim

300VAC

Çalışma Sıcaklığı

-55°C~105°C

Seri

XG4

Contact Finish Post

Tin
