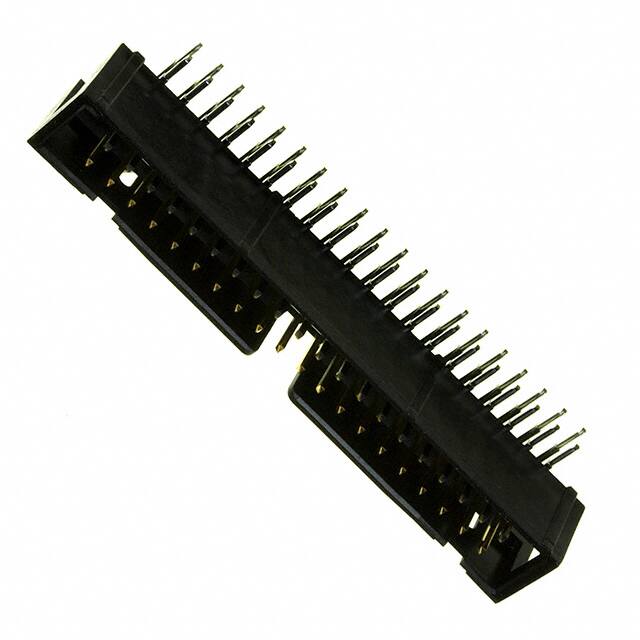

XG4C-4034

Teknik Özellikler

Housing Material

Polybutylene

Uzunluk

58.1mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Montaj

Through Hole

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Ambalaj

Tray

Orientation

Right Angle

Contact Shape

Square

Housing Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Pozisyon Sayısı

40

Depth

12.2mm

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Özellikler

Keying Slot

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Length Post

0.126 3.20mm

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Terminal

Solder

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

ECCN Kodu

EAR99

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.323 8.20mm

Montaj Tipi

Through Hole, Right Angle

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All
