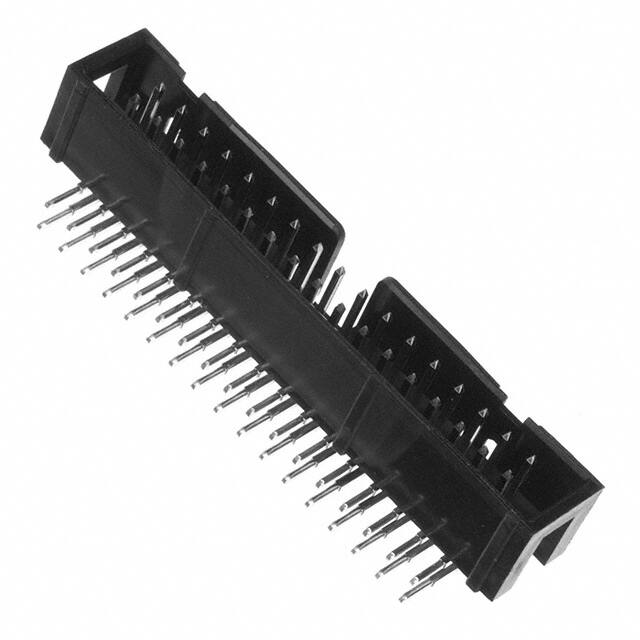

XG4C-3434

Teknik Özellikler

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Contact Length Post

0.126 3.20mm

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot

Depth

12.2mm

Pozisyon Sayısı

34

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

JESD-609 Kodu

e3

Montaj

Through Hole

Contact Resistance

20mOhm

Pitch Mating

0.100 2.54mm

Uzunluk

50.5mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Housing Material

Polybutylene

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2002

Fabrika Tedarik Süresi

17 Weeks

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Number Of Positions Loaded

All

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Montaj Tipi

Through Hole, Right Angle

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4

Insulation Height

0.323 8.20mm

ECCN Kodu

EAR99
