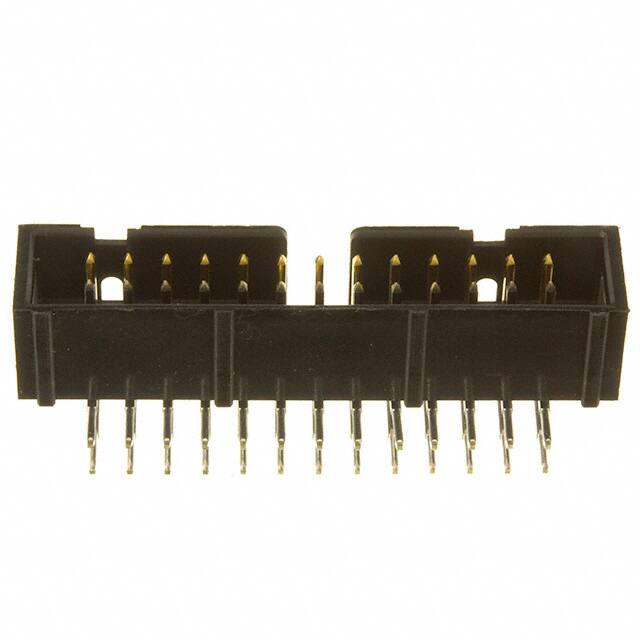

XG4C-2634

Teknik Özellikler

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Housing Material

Polybutylene

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Uzunluk

40.3mm

Fastening Type

Push-Pull

Contact Length Post

0.126 3.20mm

Terminal

Solder

Pozisyon Sayısı

26

Depth

12.2mm

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Özellikler

Keying Slot

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Connector Type

Header

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

ECCN Kodu

EAR99

Contact Type

Male Pin

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Yayın Yılı

2002

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Fabrika Tedarik Süresi

8 Weeks

Number Of Positions Loaded

All

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)
