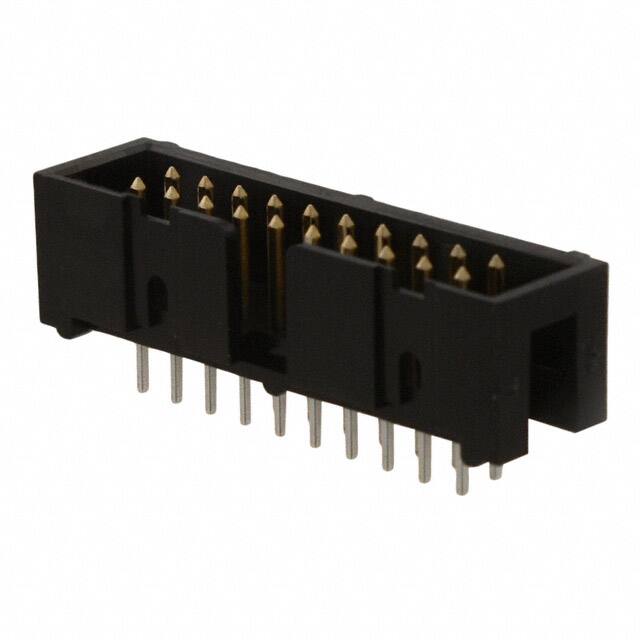

XG4C-2031

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

HTS Kodu

8536.69.40.40

Terminal

Solder

Fastening Type

Push-Pull

Özellikler

Keying Slot

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

1A

Çalışma Sıcaklığı

-55°C~105°C

Ambalaj

Tray

Contact Finish Thickness Mating

5.90μin 0.150μm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Stack Height Mating

10.1mm 19mm 20.2mm

Fabrika Tedarik Süresi

13 Weeks

Max Voltage Rating Ac

250V

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Seri

XG4

Montaj Tipi

Through Hole

Overall Contact Length

0.480 12.19mm

ECCN Kodu

EAR99

Contact Lengthmating

0.240 6.10mm

Contact Finish Mating

Gold

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Contact Type

Male Pin

Contact Length Post

0.126 3.20mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled
