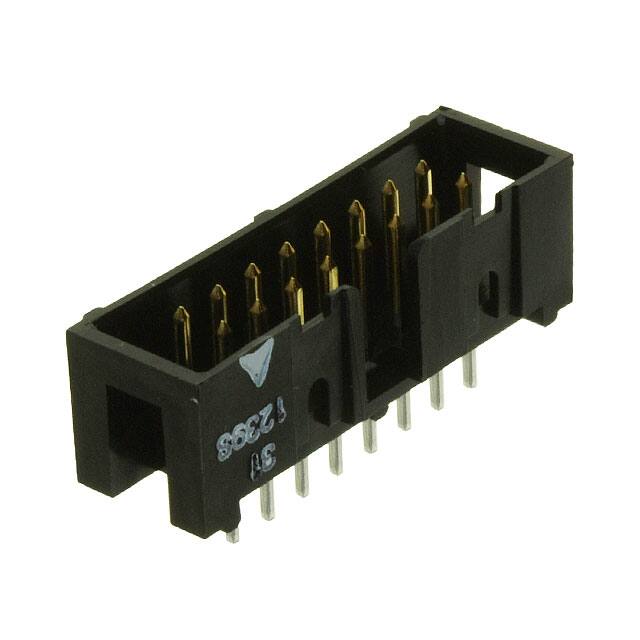

XG4C-1631

Teknik Özellikler

Montaj

Through Hole

Contact Resistance

20mOhm

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Housing Material

PBT

Stack Height Mating

10.1mm 19mm 20.2mm

Çalışma Sıcaklığı

-55°C~105°C

Insulation Color

Black

Contact Shape

Square

Orientation

Straight

Ambalaj

Tray

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot

Pozisyon Sayısı

16

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Terminal

Solder

Fastening Type

Push-Pull

Contact Length Post

0.126 3.20mm

REACH Uyumluluk Kodu

unknown

Contact Finish Mating

Gold

HTS Kodu

8536.69.40.40

Reach Svhc

No SVHC

Contact Type

Male Pin

Parça Durumu

Active

ECCN Kodu

EAR99

Overall Contact Length

0.480 12.19mm

Connector Type

Header

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Montaj Tipi

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4
