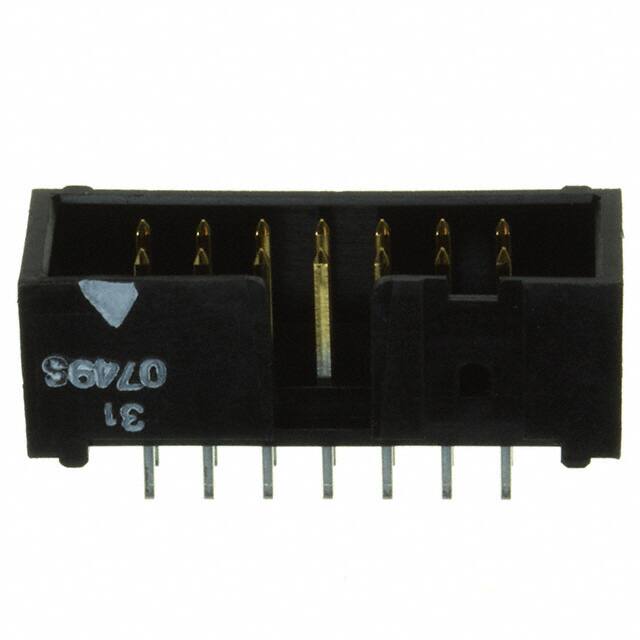

XG4C-1431

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~105°C

Ambalaj

Tray

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Stack Height Mating

10.1mm 19mm 20.2mm

Terminal

Solder

Fastening Type

Push-Pull

Kurşunsuz

Lead Free

Özellikler

Keying Slot

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Connector Type

Header

Shrouding

Shrouded - 4 Wall

HTS Kodu

8536.69.40.40

Reach Svhc

Unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Number Of Positions Loaded

All

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.335 8.51mm

Housing Color

Black

Contact Shape

Square

Orientation

Straight

Uzunluk

25.1mm

Housing Material

Polybutylene

Contact Length Post

0.126 3.20mm

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Depth

8.5mm

Pozisyon Sayısı

14

Sıra Sayısı

2

ECCN Kodu

EAR99

Overall Contact Length

0.480 12.19mm
