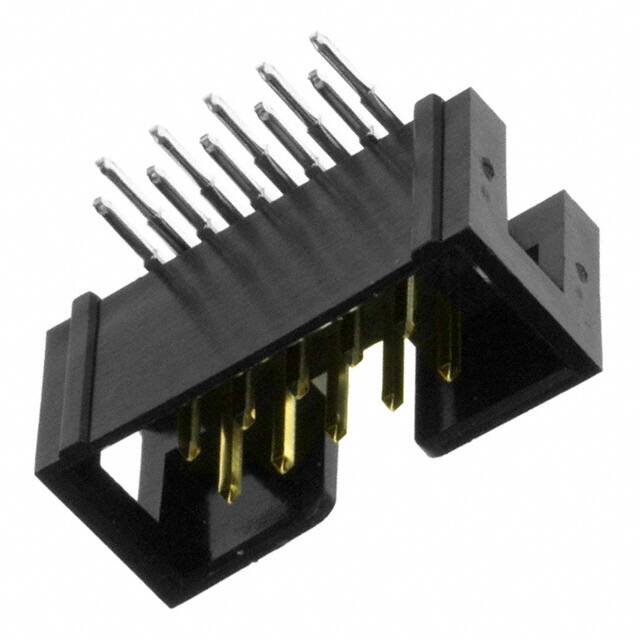

XG4C-1034

Teknik Özellikler

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Contact Type

Male Pin

Parça Durumu

Active

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

8 Weeks

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

3A

Montaj Tipi

Through Hole, Right Angle

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.323 8.20mm

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Contact Shape

Square

Orientation

Right Angle

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~105°C

Housing Color

Black

Housing Material

Polybutylene

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Uzunluk

20mm

Radyasyon Dayanımı

No

Fastening Type

Push-Pull

Contact Length Post

0.126 3.20mm

Terminal

Solder
