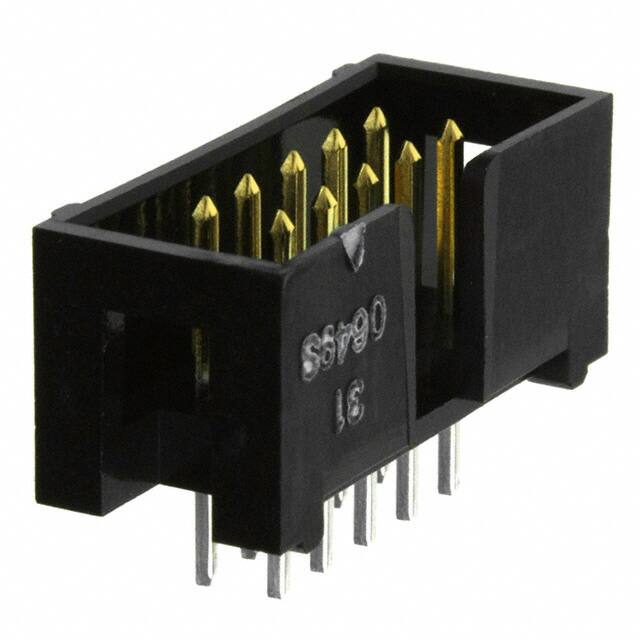

XG4C-1031

Teknik Özellikler

Housing Material

Polybutylene

Kurşunsuz Kodu

yes

Uzunluk

20mm

Contact Shape

Square

Orientation

Straight

Housing Color

Black

Depth

8.5mm

Pozisyon Sayısı

10

Sıra Sayısı

2

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Contact Length Post

0.126 3.20mm

Parça Durumu

Active

Contact Type

Male Pin

Contact Finish Mating

Gold

Contact Lengthmating

0.240 6.10mm

Overall Contact Length

0.480 12.19mm

ECCN Kodu

EAR99

Seri

XG4

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

15 Weeks

Stack Height Mating

10.1mm 19mm 20.2mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Contact Resistance

20mOhm

Montaj

Through Hole

JESD-609 Kodu

e3

Pitch Mating

0.100 2.54mm

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Özellikler

Keying Slot

Kurşunsuz

Lead Free

Fastening Type

Push-Pull

Terminal

Solder

Reach Svhc

Unknown

HTS Kodu

8536.69.40.40
