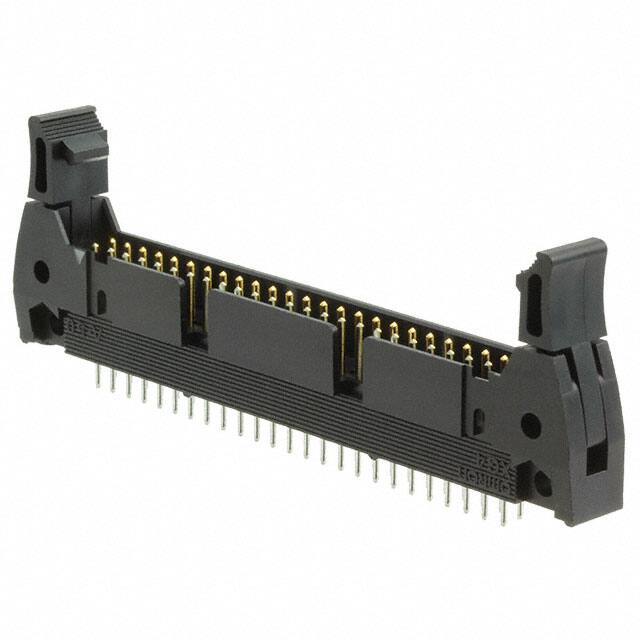

XG4A-5071

Teknik Özellikler

Insulation Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Contact Shape

Square

Orientation

Straight

Ambalaj

Tray

Contact Finish Thickness Mating

5.90μin 0.150μm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm

Stack Height Mating

23.5mm

Housing Material

PBT

Terminal

Solder

Contact Length Post

0.126 3.20mm

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long

Özellikler

Keying Slot, Mounting Flange

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Pozisyon Sayısı

50

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Overall Contact Length

0.657 16.70mm

ECCN Kodu

EAR99

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Parça Durumu

Active

Contact Type

Male Pin

Akım Değeri

3A

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Finish Post

Tin

Contact Materials

Brass, Nickel

Fabrika Tedarik Süresi

8 Weeks
