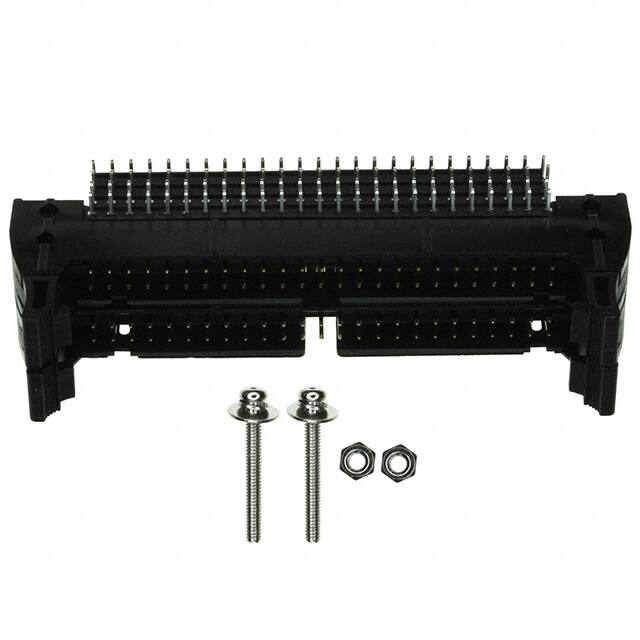

XG4A-5039-A

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Seri

XG4

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.669 17.00mm

Montaj Tipi

Through Hole, Right Angle

Akım Değeri

3A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Yayın Yılı

2002

Contact Materials

Brass, Nickel

Contact Finish Post

Tin

Fabrika Tedarik Süresi

15 Weeks

HTS Kodu

8536.69.40.40

Contact Finish Mating

Gold

Parça Durumu

Active

Reach Svhc

Unknown

Contact Type

Male Pin

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.240 6.10mm

Connector Type

Header, Stackable (2)

Özellikler

Keying Slot, Mounting Flange, Mounting Hardware

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Gender

Male

Pozisyon Sayısı

50, 50

Contact Finish Thickness Post

78.7μin 2.00μm

Max Current Rating

3A

Sıra Sayısı

2

Number Of Contacts

100

Terminal

Solder

Radyasyon Dayanımı

No

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Finish Thickness Mating

5.90μin 0.150μm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Pitch Mating

0.100 2.54mm
