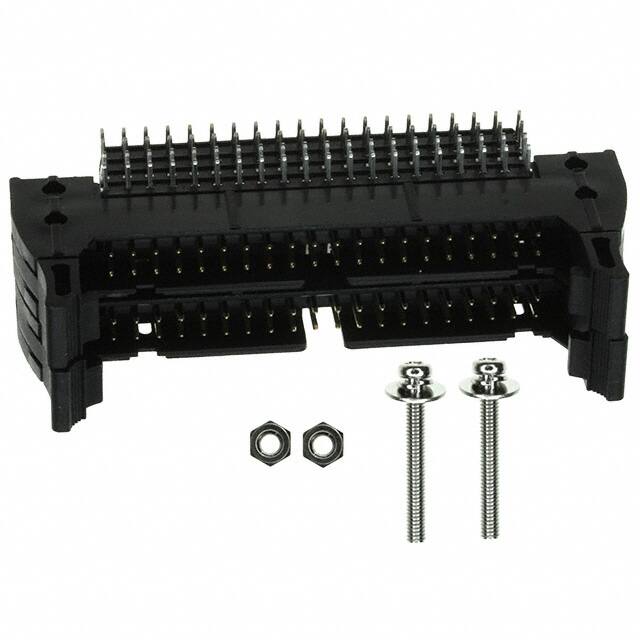

XG4A-4039-A

Teknik Özellikler

Uzunluk

70.1mm

Contact Finish Thickness Mating

5.90μin 0.150μm

Pitch Mating

0.100 2.54mm

JESD-609 Kodu

e3

Contact Resistance

20mOhm

Montaj

Through Hole

Housing Material

Polybutylene

Housing Color

Black

Çalışma Sıcaklığı

-55°C~105°C

Orientation

Right Angle

Ambalaj

Tray

Contact Shape

Square

Contact Gender

Male

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Özellikler

Keying Slot, Mounting Flange, Mounting Hardware

Sıra Sayısı

2

Max Current Rating

3A

Contact Finish Thickness Post

78.7μin 2.00μm

Pozisyon Sayısı

40, 40

Number Of Contacts

80

Terminal

Solder

Fastening Type

Latch Lock/Eject Hooks, Long

Radyasyon Dayanımı

No

Insulation Resistance

1GOhm

Contact Finish Mating

Gold

HTS Kodu

8536.69.40.40

Parça Durumu

Active

Contact Type

Male Pin

Reach Svhc

Unknown

ECCN Kodu

EAR99

Contact Lengthmating

0.240 6.10mm

Shrouding

Shrouded - 4 Wall

Connector Type

Header, Stackable (2)

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Insulation Height

0.669 17.00mm

Row Spacing Mating

0.100 (2.54mm)

Seri

XG4
